UCFL204 Flange Pillow Block Bearing Units

new products

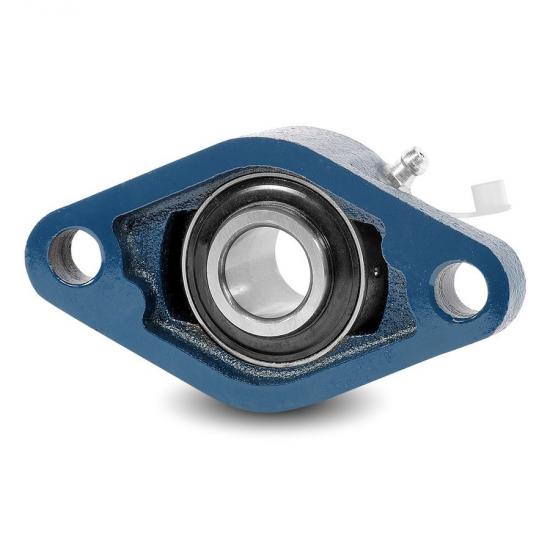

UCFL204 Flange Pillow Block Bearing Units

UCFL204 Bearing Is 2 Bolt Flange Bearing Housing Material Is With Cast Iron,Housing No. is FL204 With Insert Bearing UC204, Seals Type Is Nitrile Rubber And We Packed With Grease Chevron SRI-2,the UCFL Bearings Are Used For Manufacturing Plant, Construction works

  • item no.:

    UCFL204
  • lead time:

    7-35 DAYS
  • product orgin:

    China ,Shanghai
  • brand:

    ASAHI
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    1
products details

UCFL204  Flange Bearing Units Specification :




UCFL204 BEARING

Inside Diameter (mm): 20
a (mm): 113
e (mm): 90
i (mm): 15
Bearing No.: UC 204
Housing No.: FL 204
Ring Material: Chrome Steel
Rolling Element Material: Chrome Steel
Cage Material: Sheet Steel
Housing Material: Cast Iron
Product weight: 0.40 Kg


MKL Cast Iron Bearing Features:


Housing: Gray Cast Iron HT200

Bearing Insert:  Chrome Steel

Bearing Seal: Standard Nitrile Rubber protected with Slinger

Slinger: Sheet Steel

Grease Nipple:  Carbon Steel - Clear Zinc Plated

Set Screw: Carbon Steel - Oxided Black

Grease: Chevron SRI-2

Working Temperature range: -20°C to +90°C  ( -4°F  to  + 248°F )


Bearing Unit UCFL Series Number :

Designation

Shaft

d

Dimensions in mm Weight
(kg)
a e i g l S b Z Bi n ds
UCFL201 12 113 90 15 11 25,5 12 60 33,3 31 12,7 M10 0,45
UCFL202 15 113 90 15 11 25,5 12 60 33,3 31 12,7 M10 0,44
UCFL203 17 113 90 15 11 25,5 12 60 33,3 31 12,7 M10 0,43
UCFL204 20 113 90 15 11 25,5 12 60 33,3 31 12,7 M10 0,4
UCFL205 25 130 99 16 13 27 16 68 35,7 34.1 14,3 M14 0,58
UCFL206 30 148 117 18 13 31 16 80 40,2 38,1 15,9 M14 0,83
UCFL207 35 161 130 19 14 34 16 90 44,4 42,9 17,5 M14 1,1
UCFL208 40 175 144 21 14 36 16 90 51,2 49,2 19 M14 1,42
UCFL209 45 188 148 22 15 38 19 108 52,2 49,2 19 M16 1,75
UCFL210 50 197 157 22 15 40 19 115 54,6 54,6 19 M16 2,02
UCFL211 55 224 184 25 18 43 19 130 58,4 58,4 22,2 M16 2.79
UCFL212 60 250 202 29 28 48 23 140 68,7 65,1 25,4 M20 3.65

strut mount bearing
bearing unit sy 50tf
types of bearing mounting
bearing mountings types


We Can Produce Many High Precision Bearing House:


China Bearing housing are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments.  There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).

Bearing Block Types:

1)Pillow blocks mounted bearings– these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.

2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.

These bearing housing are with square ,round types

3)Take-up units type - UCT, HCT, and UKT.

These bearing housings are widely used in conveyor chains and conveyor belts.


bearing house manufacturer


We professional chinese bearing unit manufacturer in China ,we also are  can provide other brand bearing units such as ,TNT ,NSK,IKO,NACHI ASAHI Pillow Block Bearing.

bearing housing photos


MKL Pillow Block Bearing Can Be Widely Used In:


Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:

1)Agriculture,

2)Light textile,

3)Mining,

4)Food &beverage,

5)Pharmaceutical,

6)Chemical processing,

7)Printing,

8)Dyeing,

9)Various kinds of conveying and rolling devices.

pillow block bearing application


If you need quotation for bearing housing,pls feel free to contact with us  ,bearing housing is main of our products .
