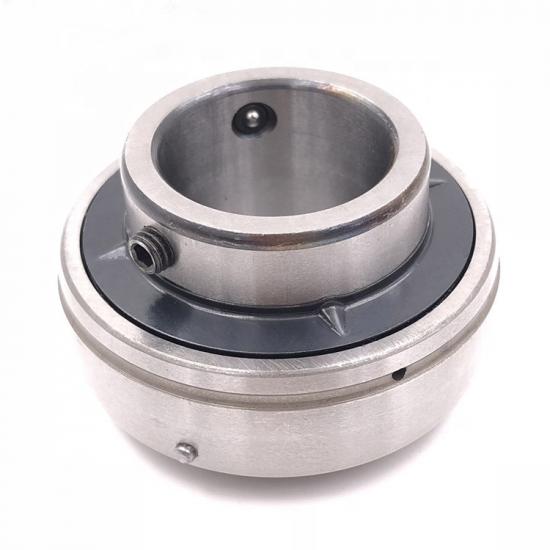

NSK 1 inch Insert Mounted Bearings UC205-16

Model Number:UC205-16 Bore Size:1 inch Structure:Insert ball bearings Material:AISI 52100 steel,heat treated,HRC58-64 OD:52mm Weight range:0.19kg Load type:Standard Duty Locking style:Setscrew locking

item no.:
UC205-16
lead time:
7-35 DAYS
product orgin:
China ,Shanghai
brand:
NSK
shipping port:
Ningbo ,Shanghai,Guanzhou
MOQ:
100

products details

Insert Ball Bearing UC205-16 Introduction :

Model	UC205-16
Bore Diameter	25.4mm
Material	Gcr15 Chrome steel +Cast Iron
Vibration	Z1V1 Z2V2 Z3V3 Z4V4
Feature	Long life, low noise
Quality	ISO9001 2000 Standard;CE

insert ball bearing UC205-16

We Can Produce Other Insert Ball Bearing As Below :

Bearing Number	Bore Dia.of Bearing		Dimensions(mm)		Weight (Kg)
	d		D	Bi
	mm	in	mm	mm
UC204	20		47	31.00	0.16
UC204/12		3/4	47	31.00	0.16
UC205	25		52	34.10	0.20
UC205/14		7/8	52	34.10	0.23
UC205/15		15/16	52	34.10	0.21
UC205/16		1	52	34.10	0.20
UC206	30		62	38.10	0.32
UC206/18		1~1/8	62	38.10	0.34
UC206/19		1~3/16	62	38.10	0.32
UC206/20		1~1/4	62	38.10	0.32
UC207	35		72	42.90	0.48
UC207/20		1~1/4	72	42.90	0.54
UC207/21		1~1/16	72	42.90	0.51
UC207/22		1~3/8	72	42.90	0.48
UC207/23		1~7/16	72	42.90	0.45

NSK Insert Bearing Application :

UC205-16 bearings are widely used for agriculture,light textile,mining,food &beverage,pharmaceutical,chemical processing,printing,dyeing,airport,air-conditioning and various kinds of conveying and rolling devices.
