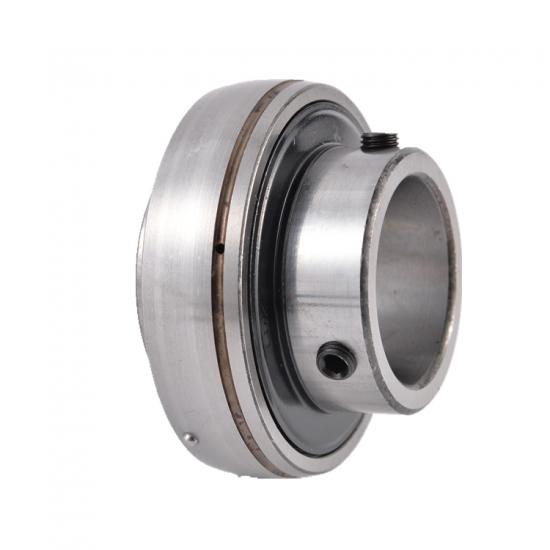

UC203 Radial Insert Ball Bearings

17*47*31mm UC203 insert ball bearings are produced with Chrome steel Gcr15 ,the bearings are with spherical outer rings,we have this bearings in stock now .

  • item no.:

    UC203
  • lead time:

    3 DAYS
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo ,Shanghai,Guanzhou,Shanghai
  • MOQ:

    100
products details

UC203 Insert Bearing Description :

Bearing No.: UC203

Innner Diamater:17mm

Outer Diameter :47mm

Inner Width :31mm

Material:Chrome steel Gcr15


Dynamic load rating Cr: 56937 N

Static load rating Cor: 29358 N

closure:2 PCS rubber seal ,or metal shields .

We also can produce with UC203-11 bearing with inner diameter 11/16".

Insert Ball Bearing UC203 dimension
Insert Mounted Bearings



We also can produce insert ballbearings with black treatments can work at high temperature.

UC203 BEARINGS
