PEER Square Bore Farm Line Bearings W210PPB6

Square hole bearing W210PPB6 with Non-Relubricable, Two Triple Lip Seals, 1.125" ID, 3.5433" Spherical OD can be widely used for PEER agricultural parts .

item no.:
W210PPB6
lead time:
30 days
product orgin:
China ,Shanghai
shipping port:
Ningbo,Shanghai,Guangzhou,Qingdao
MOQ:
100

products details

Bearings W210PPB6 Introduction :

Bearing number : W210PPB6

Size (mm) : 28.6x90x36.53

Bore Diameter (mm) : 28,6

Outer Diameter (mm) : 90

Width (mm) : 36,53

Basic dynamic load rating (C) - 39,9 kN

Basic static load rating (C0) - 23 kN

Bearings W210PPB6 Size

BEARING UNIT W210PPB6 ALSO KNOW AS:

BCA/FEDERAL MOGUL: DS210TT6

FAFNIR/TORRINGTON: W210PPB6

LINK BELT: 18S2-210E3

NTN: 2AS10-1-1/8

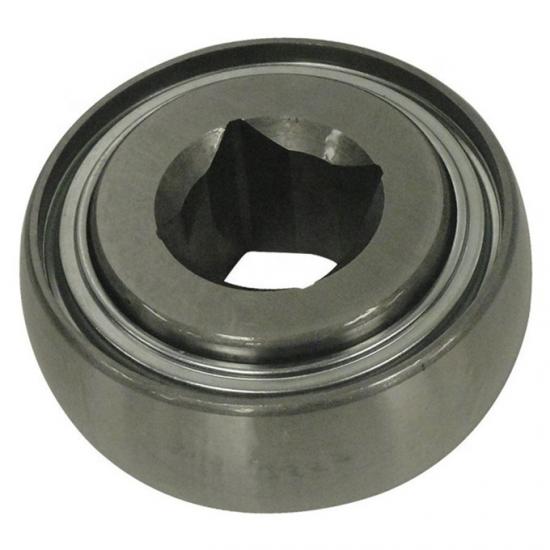

Bearings W210PPB6 Picture :

We can produce other square bore bearings as below :

Bearings No.	Dimensions(mm)					Weight
	H	d1	D	C	B	(kg)
W208PPB13	22.97	24	80	18	36.53	0.69
W208PPB6	26	28	80	18	36.53	0.652
W208PP6	26	32	80	18	36.53	0.662
W208PPB5	29.97	32	80	18	36.53	0.59
W208PPB8	29.97	32	80	30.18	36.53	0.735
W208PP5	29.97	32	80	18	36.53	0.6
W208PP20	29.97	32	80	18	36.53	0.681
W208PP8	29.97	32	80	30.18	36.53	0.709
W209PPB5	33	32	85	30.18	36.53	0.945
W210PP4	29.97	32	100	30.18	30.18	1.049
W210PPB6	29.97	32	90	30.18	36.53	0.733
W210PPB4	29.97	32	90	33.34	33.34	0.845
W211PPB3	38.89	42	100	33.34	33.34	1.208
W211PP3	38.89	42	100	33.34	33.34	1.271
W211PP5	38.89	42	101.6	44.45	44.45	1.302
