Hex Bore Agricultural Bearings

new products

11/16" Hex Bore Ag Bearing 204KRR2

Ag Bearing 204KRR2 are with hex bore 11/16" ,and this bearing also know as HPC011GP,11KB204N,1AH04-11/16.

  • item no.:

    204KRR2
  • lead time:

    30 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo,Shanghai,Guangzhou,Qingdao
  • MOQ:

    100
products details

Hex Bore Agricultural Radial Bearing Introduction :

DIMENSIONS:

BORE: 11/16" Hex

O.D. 1.85" Flat

IR Width: 0.825"

OR Width: 0.55"

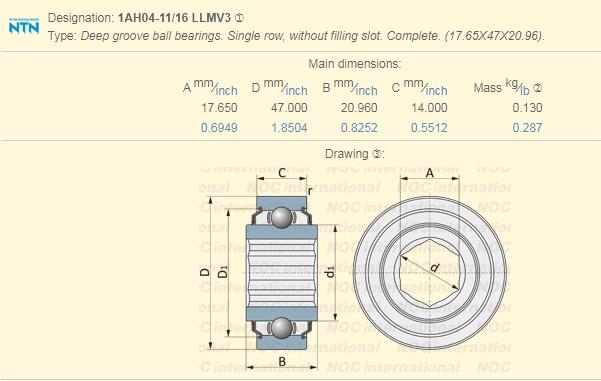

1AH04-11/16LLM Bearing Size

This Bearing Also Known As:

FAFNIR/TIMKEN: 204KRR2

BCA: HPC011GP

John Deere: JD7126

BCA :HPC011GP

PEER :11KB204N

NTN:1AH04-11/16

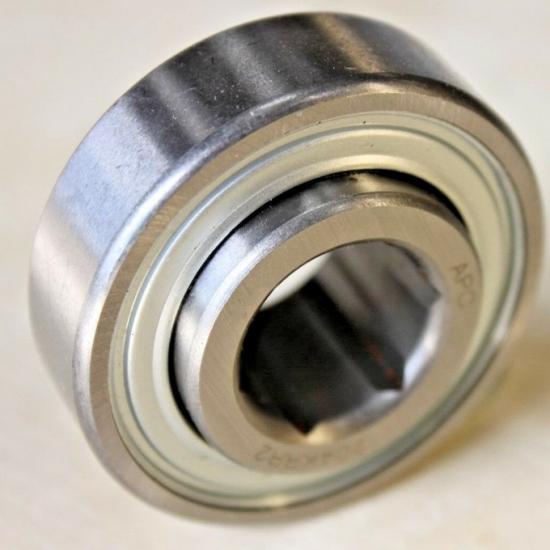

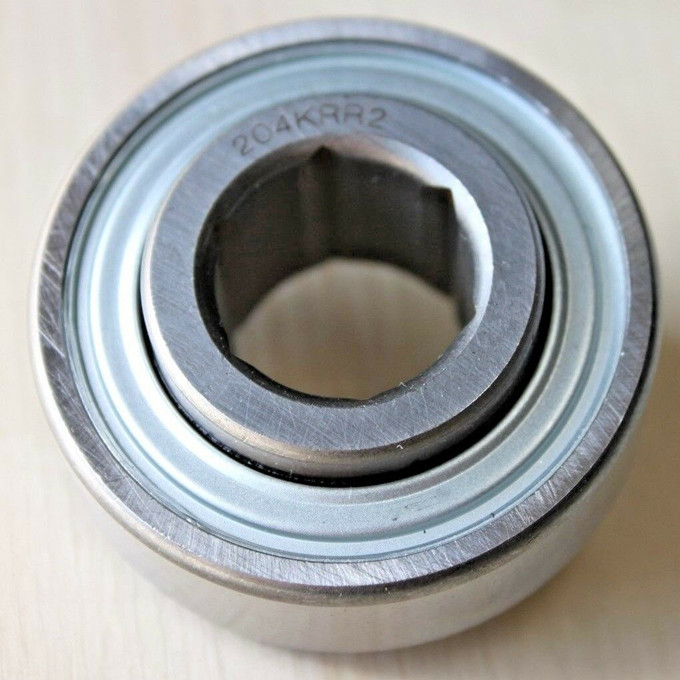

Bearing Pictures :

1AH04-11/16 bearing
NTN bearing

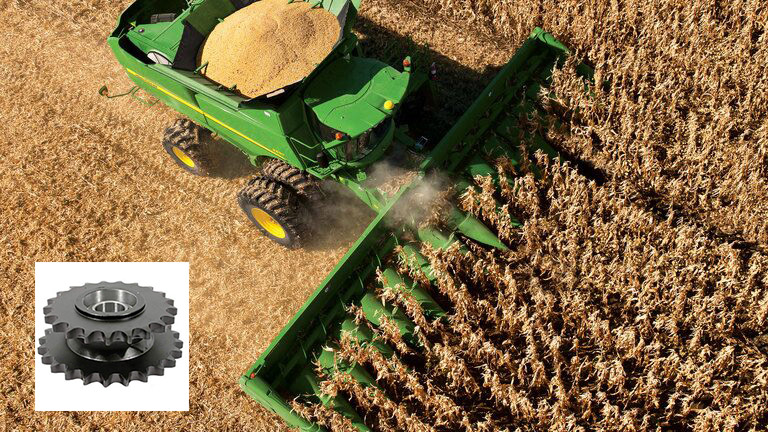

Hex Bore Bearing 204KRR2 Can Used For John Deere and others combine cross auger.

combine cross auger

Planter Special Agricultural Ball Bearing Series:

Bearing Number Type Hex Shaft Size A D Bi Be Load Ratings N Wt.
mm mm mm mm Dynamic Static kg
202KRR3 1 9/16" 14.3 35 13 11 2160 1000 0.054
204KPP2 3 11/16" 17.653 47 20.955 14 2900 1000 0.154
204KRR2 1 11/16" 17.653 47 20.955 14 2900 1410 0.145
204KRRB2 2 11/16" 17.653 47 20.955 14 2900 1410 0.145
204KPPB2 4 11/16" 17.653 47 20.955 14 2900 1410 0.145
SLE 53-012-2T Special 3/4" 19.18 53.086 34.2 18.288 3150 1610 0.299
RX84 Special 11/16" 17.653 53.97 20.193 15.875 3150 1610
