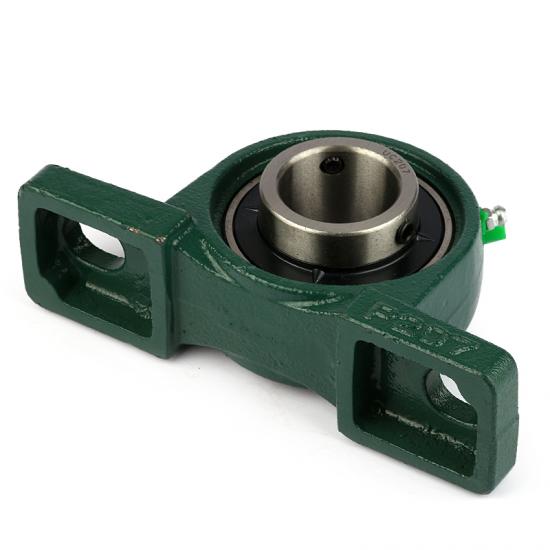

Cast Gray Iron 12mm Bearing Unit And Housing UCP201

UCP202with inner standard size 12mm ,the bearing unit are produced with Chrome steel Gcr15 and cast iron housing and locked by setscrew.

item no.:
UCP201
lead time:
7-35 DAYS
product orgin:
China ,Shanghai
shipping port:
Ningbo ,Shanghai,Guanzhou
MOQ:
1

products details

Pillow block bearings are housing combined with radial insert bearing. Most of the outer spherical bearings are made of a spherical surface The structure of bearing unit are various, and the versatility and interchangeability are good.

Bearing Unit UCP201 Specification :

Insert Bearing material :Chrome steel Gcr15 or stainless steel

Housing material : Cast iron

Dimension:

Shaft Dia (d):12mm

Height (H):30.2mm

Length (L):127mm

Bolt Size:M10

Weight :0.76 kg

UCP205-16 BEARING UNIT

Housing bearings are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments. There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).

The mount bearing is consist of housing and insert bearing ,the spherical bearing UC201 with pillow block P series,the new bearing nuit is UCP201. Due to the strong interchangeability of the spherical bearing with seat, the bearing core can be assembled freely in the bearing housing of the same specification and different shape,such as UCT201,UCF201,UCFL201.

Housing Bearing

Below Here is Mounted Bearing Units No. For Your Reference :

Unit No.	Shaft Dia		Dimensions (mm)											Bolt Size (mm)	Weight
	d		H	L	J	A	N	N1	H1	Ho	B	S	A3		(kg)
	(in)	(mm)	H	L	J	A	N	N1	H1	Ho	B	S	A3		(kg)
UCWP201		12	30.2	125	95	32	13	18	13	57	27.4	11.5	-	M10	0.72
UCWP202		15	30.2	125	95	32	13	18	13	57	27.4	11.5	-	M10	0.66
UCWP203		17	30.2	125	95	32	13	18	13	57	27.4	11.5	-	M10	0.66
UCP201		12	30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.76
UCP201-8	1/2		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.76
UCP202		15	30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.74
UCP202-9	9/16		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.74
UCP202-10	5/8		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.74
UCP203		17	30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.72
UCP203-11	11/16		30.2	127	95	38	13	19	14	61	31	12.7	-	M10	0.72
UCP204		20	33.3	127	95	38	13	19	14	64	31	12.7	46.4	M10	0.70
UCP204-12	3/4		33.3	127	95	38	13	19	14	64	31	12.7	46.4	M10	0.70
UCP205		25	36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP205-14	7/8		36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP205-15	15/16		36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP205-16	1		36.5	140	105	38	13	19	15	71	34.1	14.3	48	M10	0.76
UCP206		30	42.9	160	121	44	17	21	16	82	38.1	15.9	52	M14	1.25
UCP206-17	1-1/16		42.9	160	121	44	17	21	16	82	38.1	15.9	52	M14	1.25
UCP206-19	1-3/16		42.9	160	121	44	17	21	16	82	38.1	15.9	52	M14	1.25

We also can provide other brand bearing such as ASAHI Pillow Block Bearing.

UCP201 Bearing Housing Have Widely Applications:

Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:

1)Agriculture,

2)Light textile,

3)Mining,

4)Food &beverage,

5)Pharmaceutical,

6)Chemical processing,

7)Printing,

8)Dyeing,

9)Various kinds of conveying and rolling devices.
