MTR-40 Zinc Plated Rolling Bearings

MTR-40 Pressed Conveyor Bearings with zinc plated housing with steel balls,we have export these bearings to European countries ，free sample can be provide before order .

item no.:
MTR-40x1.5.20.10
lead time:
7-30 days
product orgin:
China ,Shanghai
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
payment:
30% TT in advance ,70% TT after finish produc
MOQ:
10000

products details

MTR-40 Pressed Conveyor Bearings Specification:

Housing material :steel with zinc plated

Bearing Sheel :steel,hardened

Inner Race: Steel ,hardened ,zinc plated

Ball cage:plastic

Ball :steel

Dimension:

Pipe size: 40 mm

Wall thickness 1.5mm

Inner diameter:10mm

We can Produce other MTR-40Series Conveyor Bearings :

Part No.	Dimension
Part No.	D1	D	d
MTR-40x1.5	37.3	39.5	8,10,12
MTR-40x2.0	36.3	39.5	8,10,12
MTR-48x1.5	45.3	47.5	10,12,15
MTR-50x1.5	47.3	49.5	10,12,15
MTR-50x2.0	46.3	49.5	10,12,15
MTR-60x1.5	57.3	59.5	12,15,20
MTR-60x2.0	56.3	59.5	10,12,15

Application :

MTR conveyor rollers can used for Belt conveyors, general goods handling, farming equipment, airports and cutting equipment.

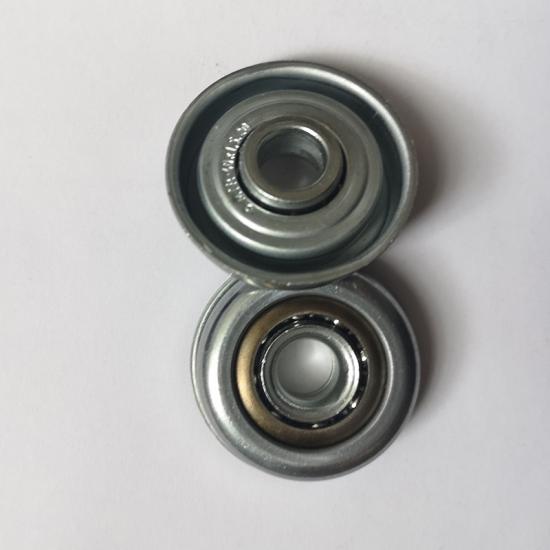

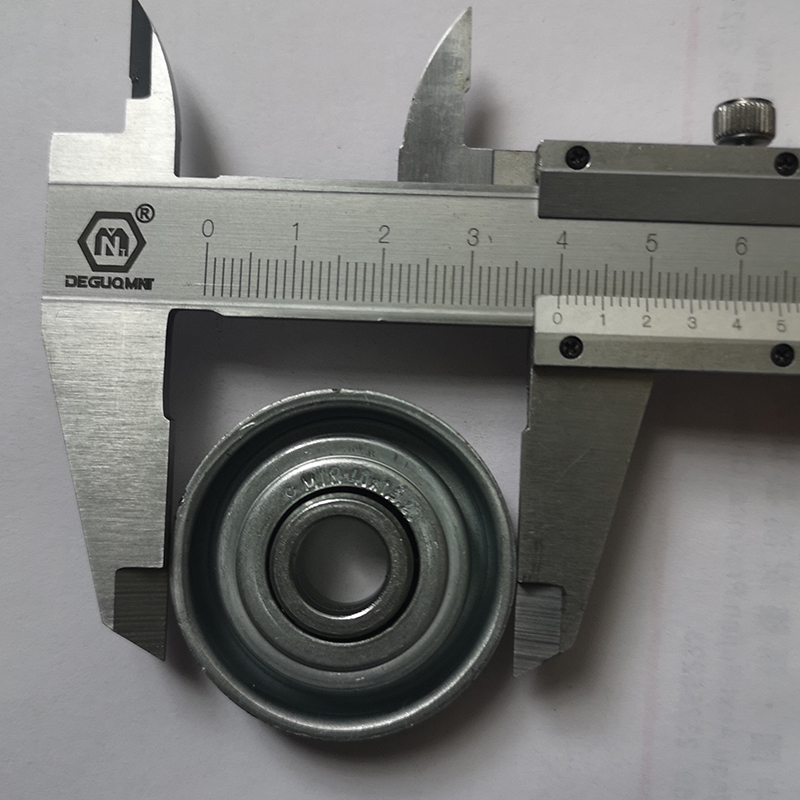

MTR-40 Pressed Steel Bearing Picture:
