KTR50 Plastic Bearing End Cap

new products

KTR50 Plastic Bearing End Cap

ZZ BEARINGS can produce different KTR plastic bearing used for conveyor roller,free sample can be provide before order .

  • item no.:

    KTR-50x2.8.02.sw11
  • lead time:

    7-30 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • payment:

    30% TT in advance ,70% TT after finish produc
  • MOQ:

    10000
products details

KTR Bearing Housing Specification :

Product Name
KTR-50
Bearing house material
PP and POM
Outside diameter
50mm
Wall thickness
1.2/1.5/2.8mm
Shaft
10mm/12mm
Bearing ball
carbon steel or stainless steel


Steel balls materials include carbon steel and stainless steel.

It’s used to produce conveyor roller.

Bearing housing material: Plastic.

Single Balls Holder.


KTR Plastic Bearing NO.:

No. Tube Size Ball Material D2 D1 d
KTR-50*1.5.02-8 50*1.5T steel or stainless steel 50 47 8
KTR-50*1.5.02-10
50*1.5T
steel or stainless steel
50
47 10
KTR-50*1.5.02-12
50*1.5T
steel or stainless steel
50
47 12
KTR-50*2.3.02-8
50*2.3T steel or stainless steel
50
45.4 8

KTR-50*2.3.02-10

50*2.3T
steel or stainless steel
50
45.4 10
KTR-50*2.3.02-12
50*2.3T
steel or stainless steel
50
45.4 12
KTR-60*1.5.02-8
60*1.5T
steel or stainless steel
50
47 8
KTR-60*1.5.02-10
60*1.5T
steel or stainless steel
50
47 10
KTR-60*1.5.02-12
60*1.5T
steel or stainless steel
50
47 12
KTR-60*2.3.02-8
60*2.3T steel or stainless steel
50
45.4 8
KTR-60*2.3.02-10
60*2.3T
steel or stainless steel
50
45.4 10
KTR-60*2.3.02-12
60*2.3T
steel or stainless steel
50
45.4 10

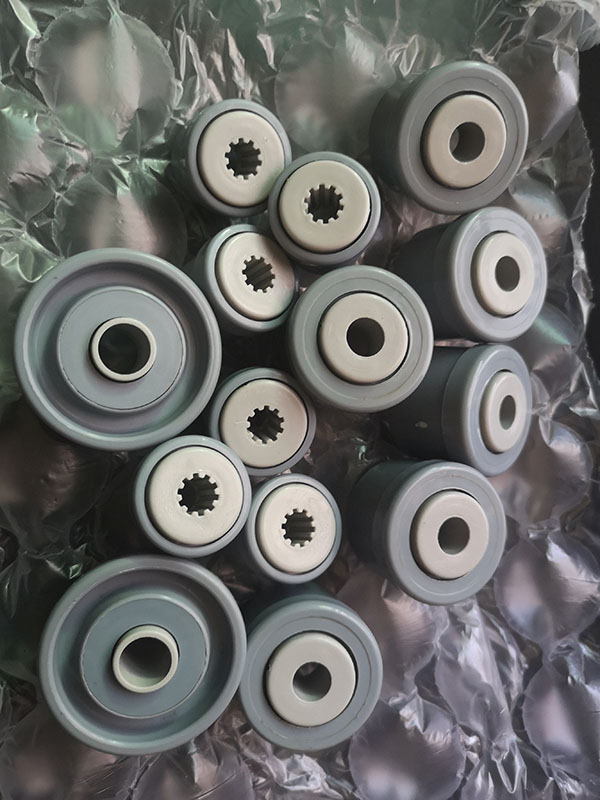

KTR Plastic Roller Bearing Pictures:

Gravity plastic roller
Gravity roller conveyor


KTR-16.10

Bearing housing material: PP

Shield: POM

Outer diameter :30mm

Thickness :1.0mm

Shaft diameter: 8mm/10mm/12mm

Ball material : steel or stainless steel


Bearing housing material: PP

Shield: POM

Outer diameter :30mm

Thickness :1.5mm

Shaft diameter: 8mm/10mm/12mm

Ball material : steel or stainless steel
