CSK17PP One-way Clutch Bearing

CSK17PP Clutch Release Bearing 6203 One Way Bearing Clutch Introduction :

Bearing No. : CSK17PP Bearing

Type: One-way Clutch Bearing

Dimension :

Inner Diameter: 14mm

Outer Diameter: 40mm

Width: 12mm

Materials:

Product Seal: two side Seal

Ball Material: Chrome Steel

Rings Material :Chrome Steel

Retainer Material: Metal or High Speed Plastic

We also can produce according to customer's requirements produce CSK12 bearing with stainless steel 420

Suffix Designations Explain :

No suffix after number: no keyway in races

With One Single P: one keyway in inner race

With Double PP : Keyways in inner and outer races.

Below here is picutre for your reference ,we can produce other one way clutch bearing for you .

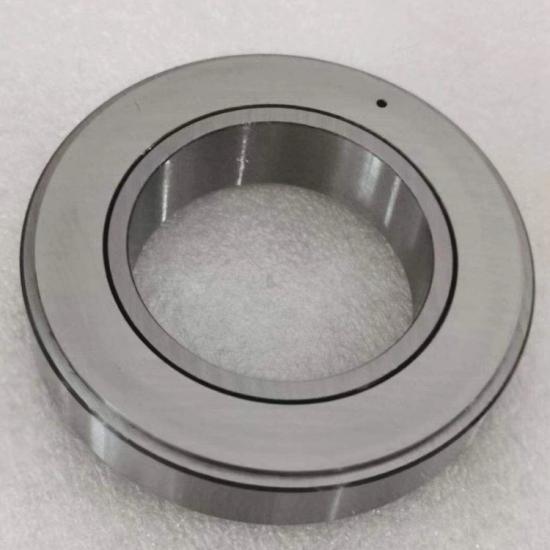

CSK17PP Sprag Clutch One Way Bearing with keyways 17x40x12 Picture Show :

Sprag Clutch or One Way Bearings integrate a sprag type freewheel into the 6200 bearing range. This creates a one way bearing or anti-reverse bearing, which will transmit torque from shaft to housing in one direction and allow free rotation in the other.

CSK One Way Bearing Feature:

The torque is transmitted on the inner and outer race by an interference fit into a rigid housing and onto a shaft. The tolerance for the housing fit is N6 and the tolerance for the shaft is n6.
Operating temperature range: -40° F (-40° C) to 212° F (+100° C).
