One Way Cam Clutch Bearing ASK 50

ASK 50 Wholesale Rolling Bearing are produce with Gcr15 material and the standard size is 50*80*16mm and this type of bearing are with standard radial clearance is C4.

  • item no.:

    ASK 50
  • lead time:

    7-35 DAYS
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo,Shanghai,Guangzhou,Qingdao
  • MOQ:

    100
products details

Clutch Bearing ASK 50 Introduction :

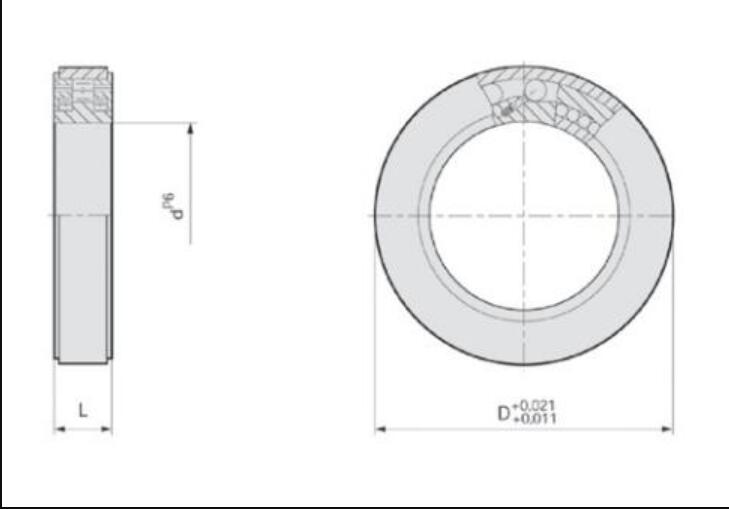

ask50 drawing

Item ASK50
Material GCr15
Outer diameter 80 mm
Inner diameter 50 mm
Width 16 mm
Bearing series 6010
Torque 125 Nm
Drag Torque 20 Ncm
Weight 0.34 kg

Freewheel Clutch Bearing Picture :



ASK50 one-way overrunning clutch is mainly used general machinery Gear Reducer , such as packaging machinery, printing machinery, textile machinery, transmission machinery, food machinery, plastic machinery, petrochemical machinery, lifting transportation machinery, high voltage switch, fan, deceleration machine, compressor, machine tools and so on.
Gear reducer


We can produce other ASK Series :

Type

Size

Bearing Series





Outside Diameter

Height

Bearing loads

Weight

Drag torque

Dynamic

static



ASK

Dp6

(mm)



TKN1)

(Nm)

nmax

(min-1)

D

(mm)

L

(mm)

C

(kN)

C0

(kN)



(kg)

TR

(Ncm)

40

6008

72

3500

68

15

16

20.6

0.25

15

50

6010

125

2200

80

16

19.6

23.5

0.34

20

60

6012

250

1800

95

18

25.3

35.1

0.5

25

1) Tmax = 2 × TKN




Mounting

ask50 bearing Mounting
