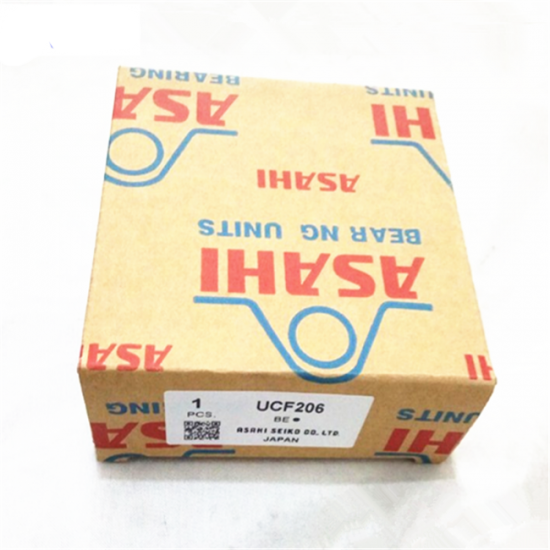

ASAHI Adjustable OEM Pillow Block Bearing Ucf206 f206

new products

ASAHI Adjustable OEM Pillow Block Bearing Ucf206 f206

NSK BEARING UNIT F206 with inner standard size 30mm ,four-bolt flanged housing units ,square design ,cast iron ,grub scress in inner ring ,RSR seal

  • item no.:

    UCF206
  • lead time:

    7-35 DAYS
  • product orgin:

    China ,Shanghai
  • brand:

    NSK
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    1
products details

Pillow block bearing consist of outer spherical ball bearing and cast iron  bearing seat. The internal structure of outer spherical ball bearing  , in the outer ring, outer ring has a truncated spherical outside surface, with that surface ,this bearing can be adjust to match with different  spherical surface of the bearing.Usually these bearings have a space between the inner hole and shaft, with the top silk, eccentric sleeve or be a set of bearing inner ring is fixed on the shaft, and with the axis of rotation.



China Wholesale Block Bearing f206 Specification :

Housing units UCF206  with four -bolt flanged housing units,square design,cast iron material ,with grub screw in inner ring ,RSR seals.

d 30mm
L(a) 108mm
z 40.2mm
Weight 1.13kg
Housing F206
Radial insert ball bearing UC206



We Can Produce Many Bearing Housing Type:

China Bearing housing are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments.  There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).


1)Pillow blocks mounted bearings– these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.

2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.

These bearing housing are with square ,round types

3)Take-up units type - UCT, HCT, and UKT.

These bearing housings are widely used in conveyor chains and conveyor belts.


The bearing unit is consist of pillow block and insert bearing ,the spherical bearing UC206 with pillow block P series,the new bearing nuit is UCP206. Due to the strong interchangeability of the spherical bearing with seat, the bearing core can be assembled freely in the bearing housing of the same specification and different shape,such as UCT206,UCF206,UCFL206.

cheapest pillow block bearings



Here Is Bearing Housing Photos For Your Reference:

bearing housing photos


Below Here Is UCP Bearing Block No. For Your Reference :

Unit No.

Shaft Dia

Dimensions (mm)

Bolt Size
(mm)

Weight

d

H

L

J

A

N

N1

H1

Ho

B

S

A3

(kg)

(in)

(mm)

UCWP201

12

30.2

125

95

32

13

18

13

57

27.4

11.5

-

M10

0.72

UCWP202

15

30.2

125

95

32

13

18

13

57

27.4

11.5

-

M10

0.66

UCWP203

17

30.2

125

95

32

13

18

13

57

27.4

11.5

-

M10

0.66

UCP201

12

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.76

UCP201-8

1/2

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.76

UCP202

15

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.74

UCP202-9

9/16

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.74

UCP202-10

5/8

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.74

UCP203

17

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.72

UCP203-11

11/16

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.72

UCP204

20

33.3

127

95

38

13

19

14

64

31

12.7

46.4

M10

0.70

UCP204-12

3/4

33.3

127

95

38

13

19

14

64

31

12.7

46.4

M10

0.70

UCP205

25

36.5

140

105

38

13

19

15

71

34.1

14.3

48

M10

0.76

UCP205-14

7/8

36.5

140

105

38

13

19

15

71

34.1

14.3

48

M10

0.76

UCP205-15

15/16

36.5

140

105

38

13

19

15

71

34.1

14.3

48

M10

0.76

UCP205-16

1

36.5

140

105

38

13

19

15

71

34.1

14.3

48

M10

0.76

UCP206

30

42.9

160

121

44

17

21

16

82

38.1

15.9

52

M14

1.25

UCP206-17

1-1/16

42.9

160

121

44

17

21

16

82

38.1

15.9

52

M14

1.25

UCP206-19

1-3/16

42.9

160

121

44

17

21

16

82

38.1

15.9

52

M14

1.25


We professional chinese bearing unit manufacturer in China ,we also are  can provide other brand bearing units such as ,TNT ,NSK,IKO,NACHI ASAHI Pillow Block Bearing.


Best Quality UCF208 Bearing Mount Can Be Widely  Used In:

Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:

1)Agriculture,

2)Light textile,

3)Mining,

4)Food &beverage,

5)Pharmaceutical,

6)Chemical processing,

7)Printing,

8)Dyeing,

9)Various kinds of conveying and rolling devices.

pillow block bearing application


If you need quotation for bearing housing,pls feel free to contact with us  ,bearing housing is main of our products .
