25mm 3 Bolts Flange Pillow Block Insert Bearing UCFA205 In Stock

new products

25mm 3 Bolts Flange Pillow Block Insert Bearing UCFA205 In Stock

Cast Iron UCFA205 Pillow Block Bearing With Set Screw Locking And The Seals Material Nitrile Rubber

  • item no.:

    UCFA205
  • lead time:

    7-35 DAYS
  • product orgin:

    China ,Shanghai
  • brand:

    ASAHI
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    1
products details

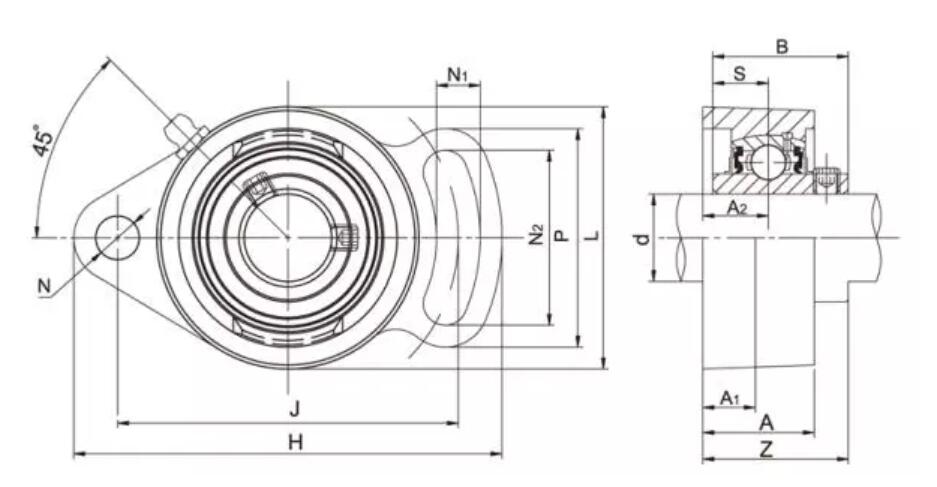

25mm 3 Bolts Flange Pillow Block Insert Bearing UCFA205 In Stock Introduction :


Inside Diameter (mm) 25
H (mm) 125
J (mm) 98
A2 (mm) 16
A1 (mm) 14
A (mm) 27
N (mm) 12
N1 (mm) 13
N2 (mm) 5
L (mm) 70
P (mm) 65
B (mm) 34.1
S (mm) 14.3
Z (mm) 35.8
Bolt Size M8 (3/8")
Bearing Insert  UC205
Housing No FA205
Weight (kg) 0.69

MKL Cast Iron Bearing Features:

Housing: Gray Cast Iron HT200

Bearing Insert:  Chrome Steel

Bearing Seal: Standard Nitrile Rubber protected with Slinger

Slinger: Sheet Steel

Grease Nipple:  Carbon Steel - Clear Zinc Plated

Set Screw: Carbon Steel - Oxided Black

Grease: Chevron SRI-2

Working Temperature range: -20°C to +90°C  ( -4°F  to  + 248°F )


Bearing Unit Number :

UCPA series:
UCPA201, UCPA202, UCPA203, UCPA204, UCPA205, UCPA206, UCPA207, UCPA208, UCPA209, UCPA210, UCPA211, UCPA212, UCPA213

 Housing mounted pillow block bearing

3 Bolts flange bracket units



We Can Produce Many High Precision Bearing House:

China Bearing housing are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments.  There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).

Bearing Block Types:

1)Pillow blocks mounted bearings– these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.

2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.

These bearing housing are with square ,round types

3)Take-up units type - UCT, HCT, and UKT.

These bearing housings are widely used in conveyor chains and conveyor belts.


bearing house manufacturer

We professional chinese bearing unit manufacturer in China ,we also are  can provide other brand bearing units such as ,TNT ,NSK,IKO,NACHI ASAHI Pillow Block Bearing.

bearing housing photos


MKL Pillow Block Bearing Can Be Widely Used In:

Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:

1)Agriculture,

2)Light textile,

3)Mining,

4)Food &beverage,

5)Pharmaceutical,

6)Chemical processing,

7)Printing,

8)Dyeing,

9)Various kinds of conveying and rolling devices.

pillow block bearing application


If you need quotation for bearing housing,pls feel free to contact with us  ,bearing housing is main of our products .
