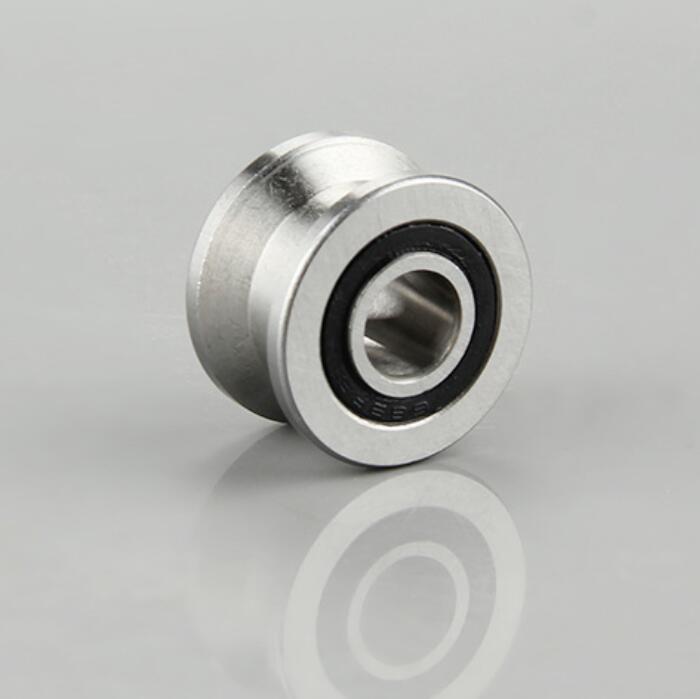

T22 U Shaped Ball Bearing

8*22.5*14.5mm U groove track roller bearing produce with Chrome steel ,we have bearings in stock ,free sample can be provide for you ,contact us now .

  • item no.:

    T22
  • lead time:

    3-7 DAYS
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • MOQ:

    100
products details

Track Rollers U22 T22 Bearing Specification:


Name: 8mm U groove bearing T22 TU22
Model Numbe

T22,V22,U22,LGD12

Dimension:  8mmX22.5mmX14.5mm
Structures  Two Row U Groove Type ball bearings
Groove Angle 60 degrees
Material: Chrome Steel /GCr15/ AISI420/AISI440
Quality: ABEC1 ABEC3
Vibration Level: V1;V2
Noise Level:  Z1;Z2
Clearance: C0 C3 C2 C5
Shields: Rubber seals ; Steel Shield
Packing:  Plastic Tube packing
Application: Linear guide machinery;  linear motion track rollers;

T22 Bearing
Track Rollers U22 T

T22 U22 U groove bearing pulley roller steel ball bearings TU22 8*22.5*14.5*13.5

U22 U groove pulley bearings


T22 U22 Bearing Dimension :




T22 -U22 Bearing with M8X28 Special bolt

T22 Bearing with M8X28 Special bolt
