55.562x139.7x55.6mm ST 740 Round Bore Disc Harrow Unit Agricultural Bearings
item no.:
FD209RElead time:
30 daysproduct orgin:
China ,Shanghaishipping port:
Ningbo,Shanghai,Guangzhou,QingdaoMOQ:
50
ST740 Ag Bearing Specification :
Bearings No.:ST740
Application :Agricultural Bearing
Inside Diameter:55.57 mm
Thickness:55.60 mm
Precision Rating:ABEC-1
Bearing Material:Chrome steel GCr15
agricultural bearing, flanged bearing
FD209RB, ST491, ST491A, DHU1-3/4" R-211, FD211RJA, FD211RJ, FD211RB, ST740, ST491B, FD2
We can Produce other Agricultural Bearings:
| Unit Number | Shaft Size | Housing | Inner Ring | Square | Bolt Circle | Frame opening | Bolt Hole | Bolt Hole | Weight approx. | ||
| Width | Width | Diameter | Diameter | ||||||||
| A | B | C | D | E | t | M min | F | Width G | Length H | kg | |
| FD209RJ | 1 3/4 RD | 1.64 | 1.687 | 5 | 5 | 6 | 3.865 | 0.531 | 1.53 | ||
| FD209RJA | 1 3/4 RD | 1.64 | 1.687 | 5 | 5 | 6 | 3.865 | 0.531 | 1.53 | ||
| FD209RE | 1 1/2 RD | 1.64 | 1.687 | 5 | 5 | 6 | 3.865 | 0.531 | 0.687 | 1.58 | |
| FD209RK | 1 1/4 SQ | 1.64 | 1.687 | 5 | 5 | 6 | 3.865 | 0.531 | 0.687 | ||
| FD209RM | 1 1/8 SQ | 1.64 | 1.687 | 5 | 5 | 6 | 3.865 | 0.531 | 0.687 | 1.86 | |
| FD210R | 1 1/8 SQ | 1.75 | 1.75 | 5 | 5 | 6 | 3.865 | 0.531 | |||
| FD211RBA | 2 3/16 RD | 1.799 | 2.187 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | 2.42 | ||
| FD211REA | 1 3/4 RD | 1.799 | 2.187 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | 2.67 | ||
| FD211RJA | 1 15/16 RDC | 1.799 | 2.125 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | 2.58 | ||
| FD211RKA | 1 3/4 H | 1.799 | 2.188 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | |||
| FD211RKB | 1 3/4 H | 1.799 | 2.188 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | |||
| FD211RM | 1 1/2 SQ | 1.799 | 2 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | 0.687 | ||
| FD211RP | 40(mm) SQ | 1.799 | 2.006 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | |||
| ST740 | 2 3/16 RD | 1.811 | 2.187 | 5.5 | 5.5 | 7 | 4.491 | 0.531 | 2.42 | ||
|

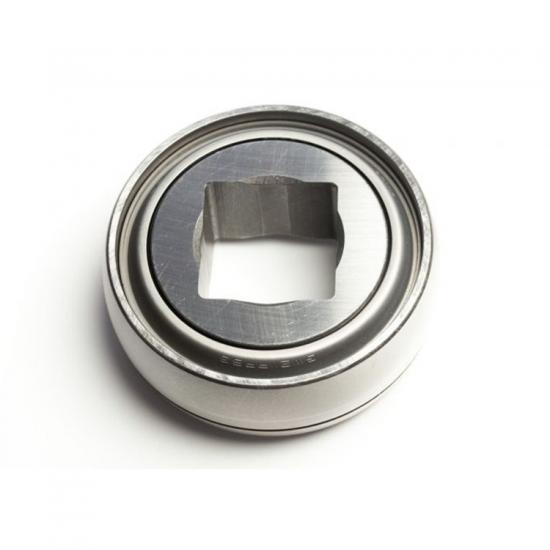

Ag Bearing Picture :
|
 |
