Radial Insert Ball Bearings GRAE25-NPP-B

Radial insert ball bearing GRAE25-NPP-B can use  for harvest combines Claas (models: Lexion, Medion, Mega, Tucano, Dominator), John Deere (series: 900, 1000, 2000, 2200, 9400, 9500), New Holland (series: CS, CX. CSX) and forage combine Claas Jaguar.

  • item no.:

    GRAE25-NPP-B
  • lead time:

    7 days
  • brand:

    INA
  • shipping port:

    Guangzhou,Shanghai,Ningbo
  • MOQ:

    1
products details

Bearing GRAE25-NPP-B Specification:

Parameters
Weight , W kg 0.18
Inner diameter , d mm 25
Outer diameter , D mm 52
Total width , T mm 31
Cage width , C mm 15
Thread , M M6
Shield type Bilateral
Shield material Metal
Spherical outer ring Yes
Shaft mounting type Cylindrical
Bearing mounting method Eccentric locking collar
Inner cage width in mm , B mm 21.4

Bearing Dimension:


INA BEARING DRAW

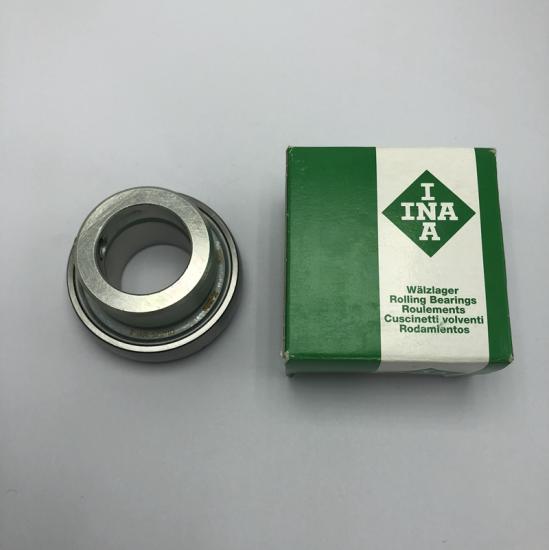

Bearings GRAE25-NPP-B Picture :


Bearing GRAE25-NPP-B
 INA 25mm Bearings

Design:

GRAE25-NPP-B ball bearing consists of two cages (internal and external) and rolling elements (balls), connected with a separator.


Application:

INA GRAE25-NPP-B bearing can be used for passing a radial load (along the radius) in harvester combines rotating shafts.


INA Bearing Features:

Spherical outer ring;

Two seals on both sides;

The eccentric locking collar for mounting.



Other INA Bearings Number For Your Reference :

Bearing Series For shaft diameter in mm Features
GRAE..-NPP-B 12-60mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RAE..-NPP-B 12-50mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RALE..-NPP-B 20-30mm Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RA..-NPP-B 5/8''-1 1/2'' Spherical outer ring,location by eccentric locking collar ,P seals on both sides,inch size bore
GE..-KRR-B 17-120 Spherical outer ring,location by eccentric locking collar ,R seals on both sides


INA Radial Insert Ball Bearings GRAE..-NPP-B Series:

spherical outer ring,location by eccentric locking collar,P seals on both sides

Bearings No. d(mm) DSP(mm) B1(mm)
GRAE-12-NPPB 12 40 28.6
GRAE-15-NPPB 15 40 28.6
GRAE-17-NPPB 17 40 28.6
GRAE-20-NPPB 20 47 31
GRAE-25-NPPB 25 52 31
GRAE-30-NPPB 30 62 35.8
GRAE-35-NPPB 35 72 39
GRAE-40-NPPB 40 80 43.8
GRAE-45-NPPB 45 85 43.8
GRAE-50-NPPB 50 90 43.8
GRAE-55-NPPB 55 100 48.4
GRAE-60-NPPB 60 110 53.1


RAE..-NPP-B Bearing Series:

Bearings No. d(mm) DSP(mm) B1(mm)
RAE12-NPP-B 12 40 28.6
RAE15-NPP-B 15 40 28.6
RAE17-NPP-B 17 40 28.8
RAE20-NPP-B 20 47 31
RAE25-NPP-B 25 52 31
RAE30-NPP-B 30 62 35.8
RAE35-NPP-B 35 72 39
RAE40-NPP-B 40 80 43.8
RAE50-NPP-B 50 90 43.8

RALE..-NPP-B Bearing :


Bearings No. d(mm) DSP(mm) B1(mm)
RALE20-NPP-B 20 42 24.5
RALE25-NPP-B 25 47 25.5
RALE30-NPP-B 30 55 26.5

RA..-NPP-B Series Bearing :


Bearings No. d(mm) DSP(mm) B1(mm)
RA100-NPP-B 25.4 52 31
RA104--206-NPP-B 31.75 62    35.8
RA104-NPP-B 31.75 72    39
RA108-NPP-B 38.1 80    43.8

Radial insert ball bearings GE..-KRR-B

spherical outer ring,location by eccentric locking collar,R seals on both sides

Bearings No. d(mm) DSP(mm) B1(mm)
GE17-KRR-B 17 40 37.4
GE20-KRR-B 20 47 43.7
GE25-KRR-B 25 52 44.5
GE30-KRR-B 30 62 48.5
GE35-KRR-B 35 72 51.3
GE40-KRR-B 40 80 56.5
GE45-KRR-B 45 85 56.5
GE50-KRR-B 50 90 62.8
GE55-KRR-B 55 100 71.4
GE60-KRR-B 60 110 77.9
GE65-214-KRR-B 65 125 66
GE70-KRR-B 70 125 66
GE75-KRR-B 75 130 67
GE80-KRR-B 80 140 70.7
GE90-KRR-B 90 160 69.5
GE100-KRR-B 100 180 75
GE120-KRR-B 120 215 81

For more bearing numer ,please contact with us directly at info@bearings-factory.com
