LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more

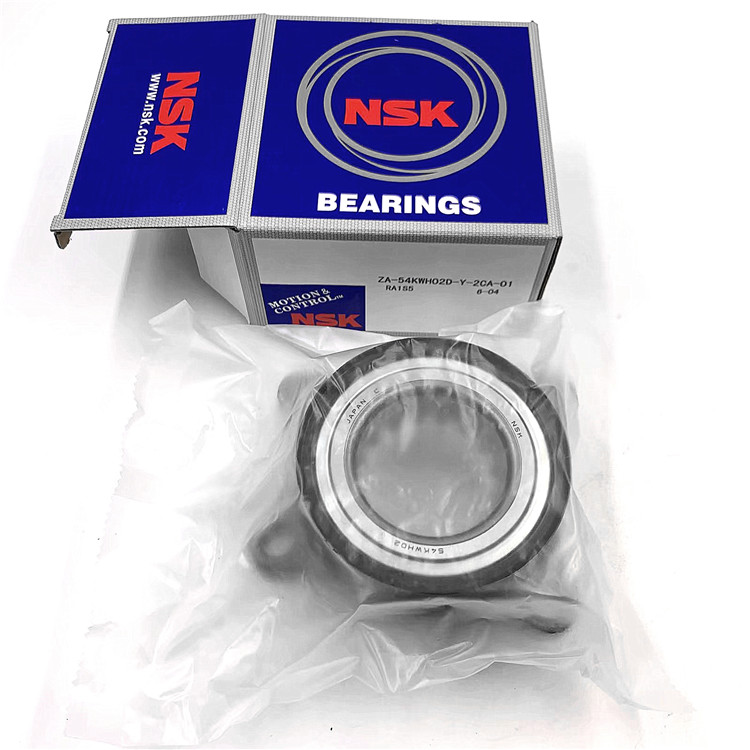

wheel hub bearing 43560-26010, 54KWH02 with size Inner Diameter: 53 mm*Outer Diameter: 90 mm*Width: 60 mm is use for Front Axle of Hiace IV Wagon.
item no.:
54KWH02brand:
NSKshipping port:
Shanghai ,Guangzhou,Ningbo ,ShanghaiMOQ:
1Introduction for Wheel Hub Bearing :
The main function of the wheel hub bearing is to load and provide precise guidance for the rotation of the car hub. It can bear both axial load and radial load, so it play a important role for the components. The wheel hub bearing is developed on the basis of standard angular contact ball bearings and tapered roller bearings. It integrates two sets of bearings and has good assembly performance, can eliminate clearance adjustment, light weight, compact structure and load capacity. Large, sealed bearings can be pre-loaded with grease, omitting external hub seals and maintenance-free. They have been widely used in cars and trucks.
Bearing Intorduction :
Hiace wheel hub unit 43560-26010, 54KWH02
Specification:
Location: Front Axle
Inner Diameter: 53 mm
Outer Diameter: 90 mm
Width: 60 mm
Car model: Hiace IV Wagon
Application of Wheel Hub Bearing :
With the development of technology, wheel hub bearing have been widely used in cars. The range and use of hub bearings are increasing, and has now reached the third generation: the first generation is DAC Series wheel hub bearing. The second generation wheel Hub Units has a flange for fixing the bearing on the outer raceway, which can be simply fixed to the axle by a nut. Make the maintenance of the car easier. The third-generation wheel Hub Units is equipped with a wheel hub bearing and an anti-lock brake system ABS. The hub wheel part is designed with an inner flange and an outer flange, the inner flange is bolted to the drive shaft, and the outer flange mounts the entire bearing together.
We have other NSK wheel bearings ,below here are some number for your reference :
Model number
d
D
B
Mass (kg)
27KWD02
27
52
43
0.41
30KWD01A
30
58
42
0.5
34KWD03D
34
67.8
40
0.73
35KWD02
35
60
30.4
0.38
37KWD01
37
74
45
0.84
38KWD01A
38
64
37
0.46
38KWD02
38
68
37
0.56
38KWD04A
38
76
40
0.94
39KWD02
38.993
72.011
37
0.63
42KWD02A
42
72
38
0.58
42KWD02D
42
72
38
0.58
42KWD08
42
80
38
0.82
43KWD02
43
76
40
0.82
43KWD04
43
77
38
0.81
45KWD04
45
77
50
0.89
45KWD03
45
78
37
0.73
45KWD05
45
80
50
1.02
46KWD04
46
77
41
0.84
46KWD03
46
78
49
0.97
EP47KWD01
47
82
57.5
1.1
previous :
NTN Hub Unit 4T-CR1-0569 CS83/5Anext :
NSK Wheel Bearing 30BWD07 For Volvo
Bearing 30BWD07 also same as the item DAC3060W This bearing with bore diameter is 30 mm,outer diameter 60.03mm the width 37mm can be waidely use in different cars such as Volvo
26x55.5x43mm DAC2656 Wheel Bearing can used for Hyundai Eon.
Tapered roller bearings 4T-CRI-0569CS83/5A with size Bore Diameter (mm) : 27*Outer Diameter (mm) : 52*Width (mm) : 45 are widely used for auto spare parts.
54*132*51mm 54KWH01 Wheel Hub Bearings can used for Toyota front axle ,we can provide sample for you to test .
35*65*35 mm DAC35650035Wheel Hub Bearings can used for Renault ,Chrysler ,Peugeot,we can provide sample for you to test .
34*64*34mm DAC34640034 Wheel Hub Bearings can used for different car wheel hub ,we can provide sample for you to test .
