Linear bearing
home

Linear bearing

8mm LM8UU Ball Bushing Bearing

new products

8mm LM8UU Ball Bushing Bearing

lowest price linear bearing  LM8UU with inner dimeter 8mm ,outer diameter 15mm and width 24mm,and this bearings are produe with Chrome steel Gcr15 and rubber seals .

  • item no.:

    LM8UU
  • lead time:

    3-7 DAYS
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • payment:

    20% TT in advance
  • MOQ:

    100
products details

Linear Ball Bearing LM8UU Introduction :

Item Name : LM8UU Bearing

Type: Linear Motion Bushing Bearing

Size: 8mm x 15mm x 24mm

Application :3D printer

Type  Linear Bearing
Number  LM8UU
Inner Diameter  d:8mm
Outer Diameter D:15mm
Width 24mm
Weight 0.015
Material  GCR-15 Chrome steel

Linear Bearing structure: With outer cylinder, retainer, balls, side seals;

Raw material Introduction : GCr15 bearing steel cylinder, G10 class precision ball, PA66 plastic retainer;

Cylinder metal body is heat treated and hardened to enhance to the rigidity and working life;

Both the inner bore and outer cylinder surface are ground several procedures to guarantee the precision;

Completely washed by the super sonic washing machine, pre-lubricated;

linear bearing

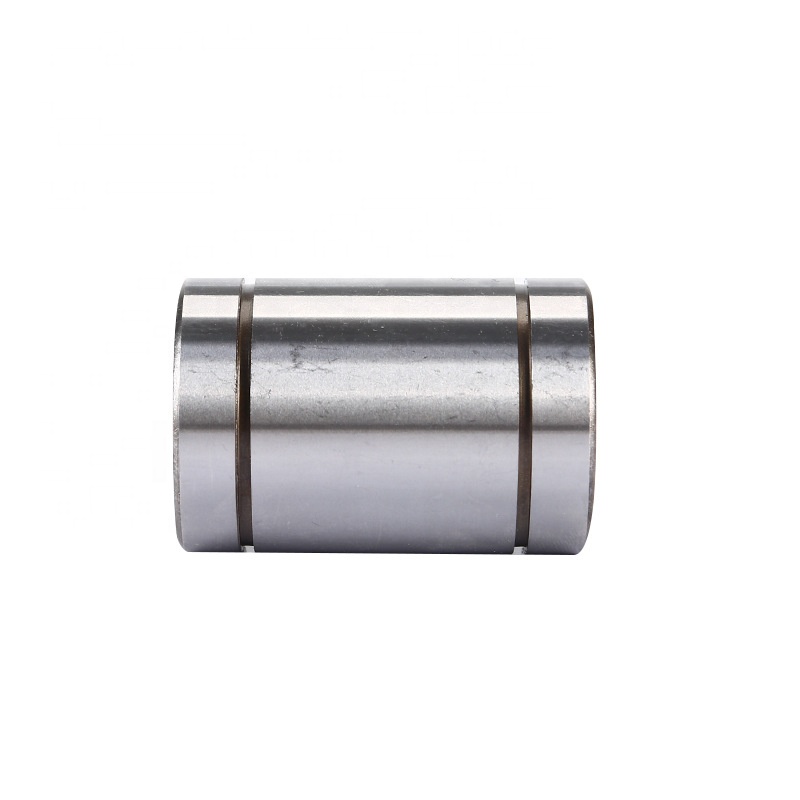

8mm Bearing Bushing Picture:

Linear Motion Bearing LM8UU
 8mm Bearing Bushing LM8UU

Features of LM8UU Linear Bushings:


1. Heavy load radial linear guideway.

2. Made up of pricision rollers crossed.

3. Made up of precision rolling balls.

4. Various applications to accuraty mooving devices in heavy duty or lignt duty.

5. Smooth running, low noise, non-pollution

6. We also produce as your requirement.


Linear Motion Bushing Type :

"LM"   metric standard type linear bearing

"LME"  inch standard type linear bearing


"UU"   rubber seals on the both sides of the long type linear bearing

"OP" open type linear bearing

"AJ" adjustment type linear bearing


*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)

*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type

Linear-motion Bearing type
Linear-motion Bearing


Below Here Are Some Linear Bearing For Your Reference:

Model Inner size(mm) Outer size(mm) Length(mm) Weight(kg/pc)
LM6UU 6 12 19 0.007
LM8UU 8 15 24 0.015
LM10UU 10 19 29 0.03
LM12UU 12 21 30 0.032
LM13UU 13 23 32 0.043
LM16UU 16 28 37 0.069
LM20UU 20 32 42 0.087
LM25UU 25 40 59 0.22
LM30UU 30 45 64 0.25
LM35UU 35 52 70 0.39
LM40UU 40 60 80 0.585
LM50UU 50 75 100 1.58
LM60UU 60 90 110 1.86
LM80UU 80 120 140 4.42


Application of Linear shaft bearing:
    Linear bearings are more and more widely used in precision equipment such as electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, instruments, robots, machine tools, CNC machine tools, automobiles and digital 3D coordinate measuring equipment Or in the special machinery industry.


3D printer bearing


Company Introduction :

ZZ BEARINGS is a comprehensive enterprise integrating production and sales, specializing in the production and export for bearing ,we can produce linear bearing with standard and non-standard linear ball bearing with your sample or drawing .

ZZ BEARING



We Are Linear Bearing Manufacturers,Working With Us Have Below Advantages :

1,Low MOQ: Can meet your small order request.

2,OEM accepted: Can make products as per your design.what you need to do is sending us your drawings

3,Good service: Treat every client as friend.

4,Good quality: Have strict quality inspection system. Good reputation in the market.


Mark:if you need the matched Linear motion slide units,please feel free to contact us
