6802-2RS 6802-ZZ Radial Ball Bearing

new products

6802-2RS 6802-ZZ Radial Ball Bearing

15*24*5mm 6802 bearings are produce with Chrome steel Gcr15 .

  • item no.:

    6802
  • lead time:

    7 days
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • MOQ:

    100
products details

Thin Section  Bearing Deep Groove Ball Bearing 6802ZZ  6802RS Specification :

6802 Bearing Size:

inner diameter:15mm

outer diameter:24mm

height :5mm

Bearing number:6802-2RS, 6802 2RS, 6802 RS, 6802RS, 6802-ZZ, 6802 ZZ, 6802ZZ, 6802 Z

6802 bearing
6802 zz bearing
6802 RS bearing


6800 Series Thin Wall Bearing Catalogue :

N0.



Bore

O.D Width Chamfer Load Rating Maximuum Seed Weight

mm

mm mm mm

Dynamic

Cr

Static

Cor

Grease

r/min

Oil

r/min

Kg/pcs
685

5

11 3 0.15

0.715

0.282

35000

45000

0.0011
686 6 13 3.5 0.15 1.08 0.44 33000 42000 0.0019
687 7 14 3.5 0.15 1.17 0.505 31000 40000 0.0021
688 8 16 4 0.2 1.61 0.715 29000 38000 0.0031
689 9 17 4 0.2 1.72 0.82 28000 36000 0.0032
6800 10 19 5 0.3 1.83 0.925 26000 34000 0.005
6801 12 21 5 0.3 1.92 1.04 22000 30000 0.006
6802 15 24 5 0.3 2.08 1.26 20000 28000 0.007
6803 17 26 5 0.3 2.23 1.46 19000 26000 0.008
6804 20 32 7 0.3 4 2.47 17000 22000 0.019
6805 25 37 7 0.3 4.3 2.95 15000 19000 0.022
6806 30 42 7 0.3 4.7 3.65 13000 17000 0.026
6807 35 47 7 0.3 4.9 4.05 11000 15000 0.029


For Bearing Material We Can Produce With :

Chrome steel Gcr15 ,carbon steel ,stainless steel ,ceramic ,plastic

We also can produce 6802 ceramic bearing

BEARING MATERIAL

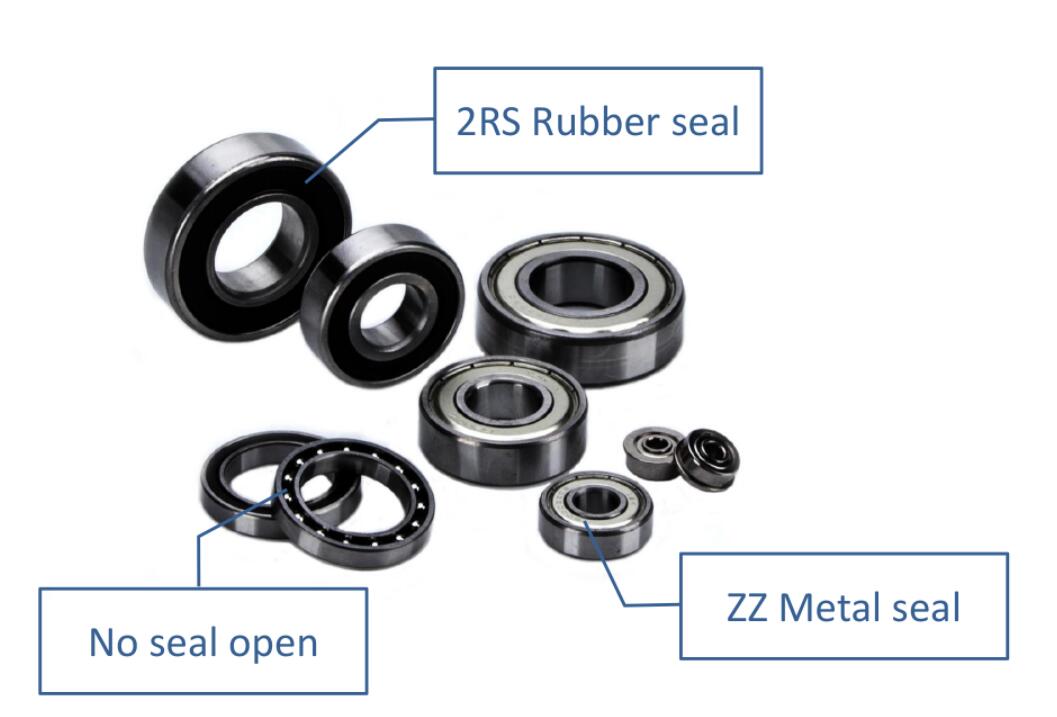

We can produce 6802 bearing with rubber seal ,metal shield ,or open 6802ZZ ,6802 RS

6802 RS Bearing

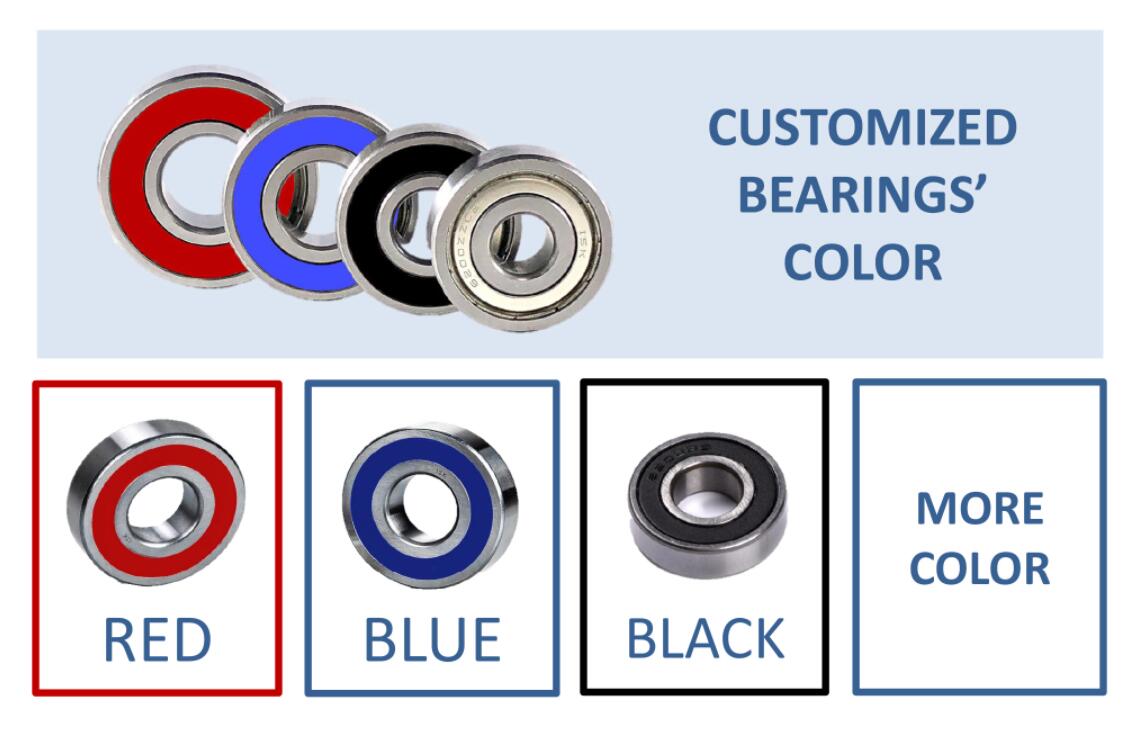

For 6082 2RS bearing rubber seal ,we can produce with red seal ,black seal ,blue seal

6802 thin wall bearing


ZZ BEARING also can do OEM service ,we can put your logo on bearings

6802 ball bearing

6802 Thin Section Bearing Application :

ZZ BEARINGS Production Process :



 FAQ:


Q1: Is it ok to mark my own brand on your bearing in small quantity?

 A: Yes, we can engrave your own brand on the rings of bearing or, we can open the cover mold of your own brand name.


 Q2: Does your company accept the small quantity of orders?

 A: Once your bearing is standard size bearing, we accept the small quantity even in 1pc.


 Q3: Can I get the free sample?

 A: Yes, the sample is free, but the freight cost has to be paid by you.


 Q4: If I don’t see the type of bearing I need, what should I do?

 A: We have too many bearing series number. Sometimes, we are unable to put them all on the Alibaba. Just send the inquiry to us, and we’ll send you the detail of your bearing.


ZZ BEARING can produce bearing’s value is more cost-effective for you.
