6200 Series Ball Bearing

new products

6206 Fan Motor Bearing

30*62*16mmball bearing with Chrome stell Gcr15 can used for fan motor bearings

  • item no.:

    6206
  • lead time:

    7 days
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • MOQ:

    100
products details

Bearing 6206 Specification:

Bearing No.: 6206 2RS ,6206ZZ ,6206 OPEN
Seals Type:ZZ/2RS
Material:
Ring and balls :Chrome Steel GCR15
Cage:Steel Cage

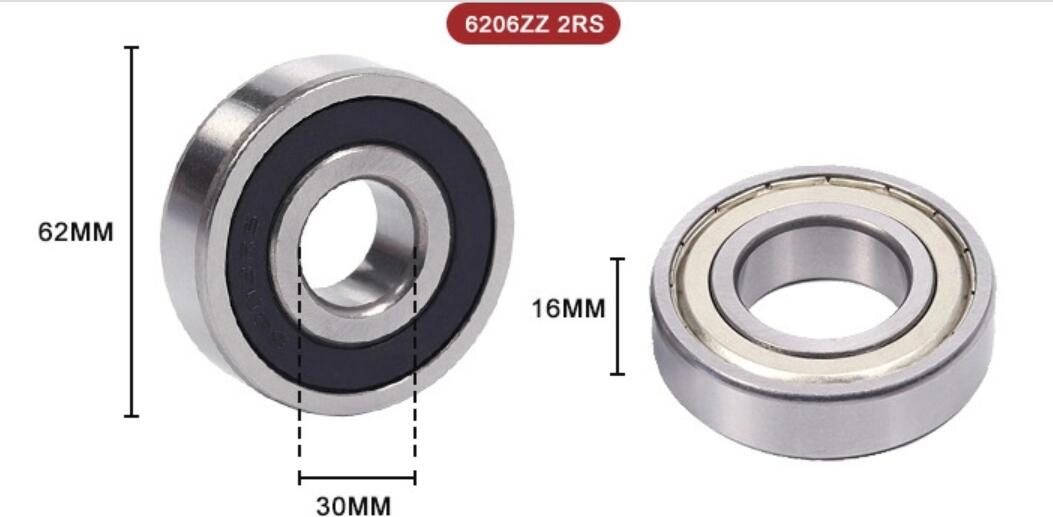

6206 Bearing Dimensions:
Inner diameter :30mm
Outer diameter :62mm
Height:16mm

6206 bearing dimensions


6206 Ball Bearings Features:


1.Excellent performance in hot conditions, dry environments and low rotational speed applications

2. Bearing can working at temperature range -30°C to 150°C

3. Suitable for high and very high speeds

4.We also can produce with differetn material such as ceramic

5.OEM service welcome ,available in many designs, variants and sizes


6206 Ball Bearing Application :

Ball bearing fan designs use a ring of balls around the shaft to solve uneven wear and rotor wobble problems. Most fan motor designs have two bearings, one in front of the other, and these bearings are usually separated by springs. The bearings offer reduced friction compared to sleeve designs and the springs can assist with any tilt in the fan that the rotor’s weight may induce. If the springs are placed the whole way around the shaft, the device can be operated at any angle without wear or friction, giving a more reliable design.

Ball bearing fans

bearing 6206 2z
6206 2rs bearing
