High Temperature Bearing
home

High Temperature Bearing

6205 Waffle Roasting Machine Bearing With 500 °C

new products

6205 Waffle Roasting Machine Bearing With 500 °C

6205ZZ bearing size 25*52*30mm ,with ceramic balls and high temp alloy steel material,and we packed with Japan grease DOWCORNING grease can used in high temp area such as Waffle Roasting Machinery .

  • item no.:

    6205
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    1
products details

High Temperature Bearing Introduction :


Bearing Name

500 °C More 6205 Waffle Roasting Machine Bearing

bearing number  6205
size  25*52*30mm
weight  0.15kg
application

Waffle Roasting Machine

package  white box or as customers' request
max degree More Than 500 degree
Grease

DOWCORNING

warranty  1 year

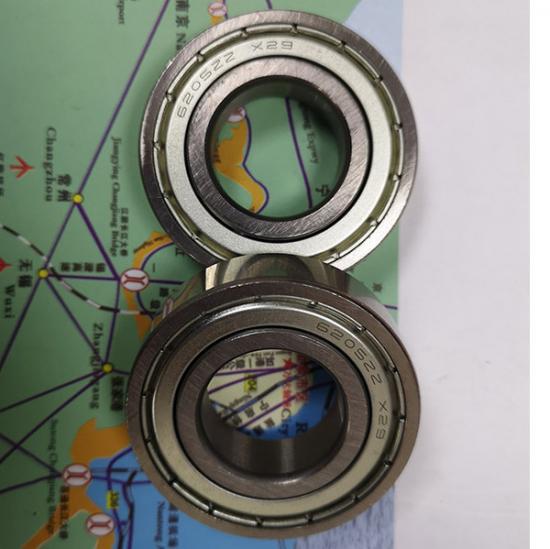

High Heat Bearings Picture:

high quality bearing


6205 bearing


6205ZZ Bearings Size :


Inner Diameter :25mm

Outer Diameter : 50mm

Bore Diameter :15mm

6205 ball bearing
China 6205 ball bearing




We also do produce with 150 degree bearing ,200 degree bearing,300 degree bearing or higher temp,below here is some bearing specification for your reference :



 Bearing 6203 For 250 Degree Sepcification :

1) We can mark bearing number or your company logo on bearing rings or seals .

2) We offer produce with Radial Clearance C4 or larger clearance

3) The bearing gease we packed is TRIBOLUBE-57

4) The Seals material is with FFKM material  rubber seals

5) Bearing packing can be as your requirements, we can do color box as your requirements.

6) And we are assembled with rivet cage


150°C High Temp Bearing Specification:

1) Bearing material :Chrome steel Gcr15

2)NBR rubber seals,color can be produce as your requirements

3) Bearing Radial Clearance:C4

4)Bearing Grease:150°C high temperature grease Chevron SRI-2,we can we packed grease as your requirements

5) With V-groove ring ,can have a better protect for grease leak.

6) Bearing packing: opp bag /color box .

7)OEM service


Ball Bearing can working at 200°C Specification:
1)Bearing Material: Chrome steel Gcr15
2)Bearing Radial Clearance :C4
3)Bearing Grease:200°C high tempeture bearing POLYREX EM

4) Can be with metal shield or rubber seals

5) With V-groove ring ,can have a better protect for grease leak.

6) Bearing packing: opp bag /color box .

7)OEM service


We also can be more higher temperature bearing with full ceramic,these bearing can work at temperature at  1200 ° C such as 608 high temp bearing with full ceramic ZRo2 .


HIGH TEMP 608 BEARING


How To Choose High Temperature Bearing Grease :


The choice of high temperature bearing grease should be selected according to the working temperature conditions,how many degree bearing need to work ,so it must be high temperature and oxidation resistant grease. Moreover, a large amount of coke deposits cannot be caused to cause the bearing to be stuck.


There are many brands that choose high-temperature bearing grease brands, such as Klüber in foreign countries, synergy; the Great Wall of China, Fürth and so on.


We also can produce with open bearing and you can add grease or do further bearing treatment yourself.

And we can produce high temparature pillow block beaing ,insert bearing ,for more bearings ,pls contact with us .
