LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more

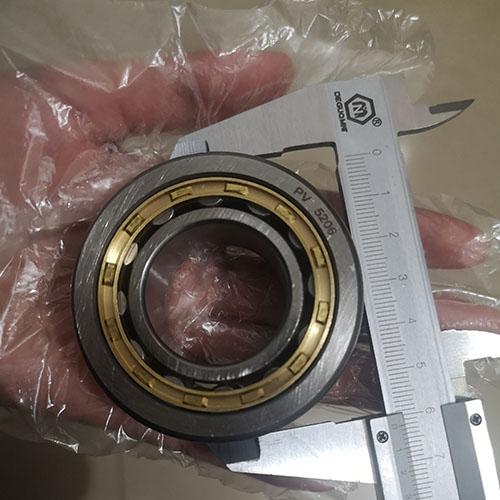

30*62*23.8mm 5206 bearing are produce with Chrome steel ,the inside are with roller cage ,we can provide sample for you in advance .
item no.:
5206lead time:
7 daysproduct orgin:
China ,Shanghaishipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAIMOQ:
1005206 Bearing Specification :
Bore Diameter: 30 mm
Outside Diameter: 62 mm
Width :23.8mm
Bearing Material :Chrome Steel
Feature: With roller double cage
Same as bearing 3206
 |
 |
 |
The Application of 5206 Bearing :
oil pump, roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery.
We can Produce Other Double-Row Angular Contact Bearing：
| Bearing No. | Boundary Dimensions(mm) | Basic Load Ratings(N) | Limiting Speeds(RPM) | Mass(kg) | |||||
| d | D | B | r min | Cr | C0r | Grease | Oil | approx | |
| 5200 | 10 | 30 | 14.3 | 0.6 | 7 150 | 3 900 | 17 000 | 22 000 | 0.05 |
| 5201 | 12 | 32 | 15.9 | 0.6 | 10 500 | 5 800 | 15 000 | 20 000 | 0.06 |
| 5202 | 15 | 35 | 15.9 | 0.6 | 11 700 | 7 050 | 13 000 | 17 000 | 0.07 |
| 5302 | 42 | 19 | 1 | 17 600 | 10 200 | 11 000 | 15 000 | 0.11 | |
| 5203 | 17 | 40 | 17.5 | 0.6 | 14 600 | 9 050 | 11 000 | 15 000 | 0.09 |
| 5303 | 47 | 22.2 | 1 | 21 000 | 12 600 | 10 000 | 13 000 | 0.14 | |
| 5204 | 20 | 47 | 20.6 | 1 | 19 600 | 12 400 | 10 000 | 13 000 | 0.12 |
| 5304 | 52 | 22.2 | 1.1 | 24 600 | 15 000 | 9 000 | 12 000 | 0.23 | |
| 5205 | 25 | 52 | 20.6 | 1 | 21 300 | 14 700 | 8 500 | 11 000 | 0.19 |
| 5305 | 62 | 25.4 | 1.1 | 32 500 | 20 700 | 7 500 | 10 000 | 0.34 | |
| 5206 | 30 | 62 | 23.8 | 1 | 29 600 | 21 100 | 7 100 | 9 500 | 0.29 |
| 5306 | 72 | 30.2 | 1.1 | 40 500 | 28 100 | 6 300 | 8 500 | 0.51 | |
| 5207 | 35 | 72 | 27 | 1.1 | 39 000 | 28 700 | 6 300 | 8 000 | 0.43 |
| 5307 | 80 | 34.9 | 1.5 | 51 000 | 36 000 | 5 600 | 7 500 | 0.79 | |
| 5208 | 40 | 80 | 30.2 | 1.1 | 44 000 | 33 500 | 5 600 | 7 100 | 0.57 |
| 5308 | 90 | 36.5 | 1.5 | 56 500 | 41 000 | 5 300 | 6 700 | 1.05 | |
| 5209 | 45 | 85 | 30.2 | 1.1 | 49 500 | 38 000 | 5 000 | 6 700 | 0.62 |
| 5309 | 100 | 39.7 | 1.5 | 68 500 | 51 000 | 4 500 | 6 000 | 1.4 | |
Inner Diameter: 1/4" Outer Diamter: 21/32", Plain, Self-Lubricating, Self-Aligning, Low Speed, Narrow, Grooved Outer Ring, MS14101-4 Bearing.
AISI52100 chrome steel ball, 100CR6 GCR15 chrome steel ball With Grade G10 and 19.05mm
stainless steel 304 316 420 440C,We do surface treatment polish finish High Polished,soft polished,harden polished,unpolished.
The R4-2RS radial ball bearings with inner size 1/4 inch can be widely used in different applications. The R4-2RS ball bearing with two rubber seals. We also can produe with R4 RS, R4 ZZ, R4 Z,R4 ,you can choose as what you need .
The R4-2RS radial ball bearings with inner size 1/4 inch can be widely used in different applications. The R4-2RS ball bearing with two rubber seals. We also can produe with R4 RS, R4 ZZ, R4 Z,R4 ,you can choose as what you need .
China best quality plastic bearing 608 with anti-magnetic insulation, wear-resistant corrosion-resistant, oil-free self-lubricating, high temperature resistance to cold and other characteristics, can be used for extrem operation environment.
