30YM1/48Y1 Tapered Roller Motorcycle Bearings

new products

30YM1/48Y1 Tapered Roller Motorcycle Bearings

30YM1/48Y1 Steering Head Bearing with dimension 30*48*12 mmcan be used For Column Izh Jupiter Izh Planeta,we have bearings in stock now ,can provide with short delivery time.

  • item no.:

    30YM1/48Y1
  • lead time:

    7 days
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • MOQ:

    100
products details

Bearing Specs:

No.: 38YM1/48Y1

Type: Taper Roller Bearing

Application :For motorcycle

Lubrication: Need Grease

Dimensions: 30 x 48 x 12 mm

ID (inner diameter)/Bore: 30 mm

OD (outer diameter): 48 mm

Width/Height/thickness: 12 mm

Weight: 77 g

Dynamic load :23500N
Static load :21200N

38YM1/48Y1 bearing


30YM1/48Y1 Bearing  Can For Motorcycle Steering-Head

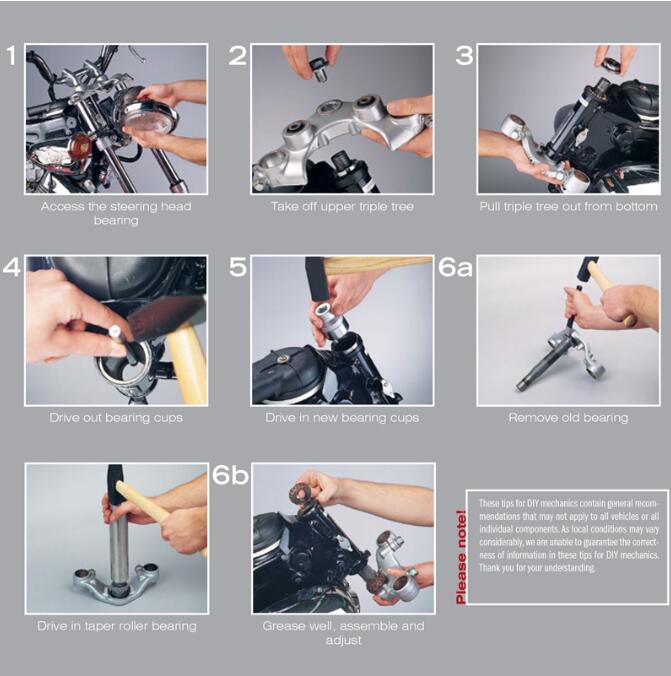

How to replace your Motorcycle Steering-Head?

1.Access the steering head bearing
2.Take off upper trpie tree
3.Pull triple tree out from bottom

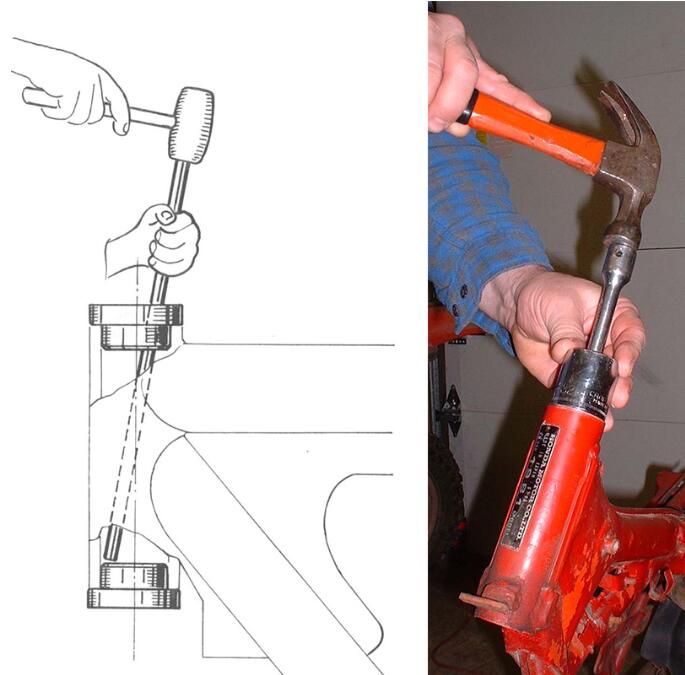

4.Drive out bearing cups
5.Drive in new bearing cups
6.Remove old bearing
7.Drive in taper roller bearing
8.Grease well,assemble and adjust


Steering Head Bearing

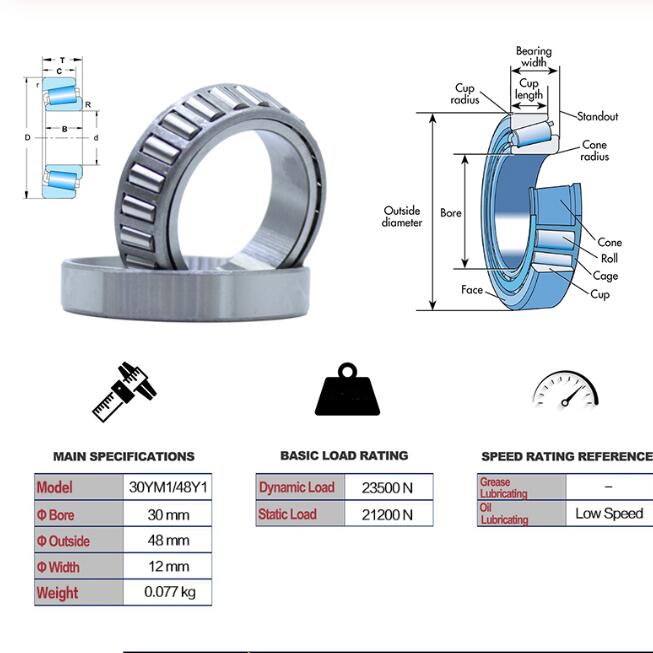

The structure of taple roller bearing :


taper roller bearing struture

We can prodive different type of taper roller bearings ,if you are interested ,pls feel free to contact with me ,here are some KOYO bearing number for your reference:

Bearing No. Boundary dimensions(mm)
d D T B
323/32R 32 75 29.75 28
32907JR-2 35 55 14 14
32007JR 35 62 18 18
33007JR 35 62 21 21
30207CR 35 72 18.25 17
30207JR 35 72 18.25 17
32207-1R 35 72 24.25 23
32207JR 35 72 24.25 23
33207JR 35 72 28 28
30307DJR 35 80 22.75 21
30307XR 35 80 22.75 21
30307JR-1 35 80 22.75 21
TR0708-1R 35 80 32.75 31
32307JR 35 80 32.75 31
32908JR 40 62 15 15
32008JR 40 68 19 19
33008JR 40 68 22 22

Taper roller bearing have widely application:
taper roller bearing

For more bearings ,pls contact with us free at info@bearings-factory.com
