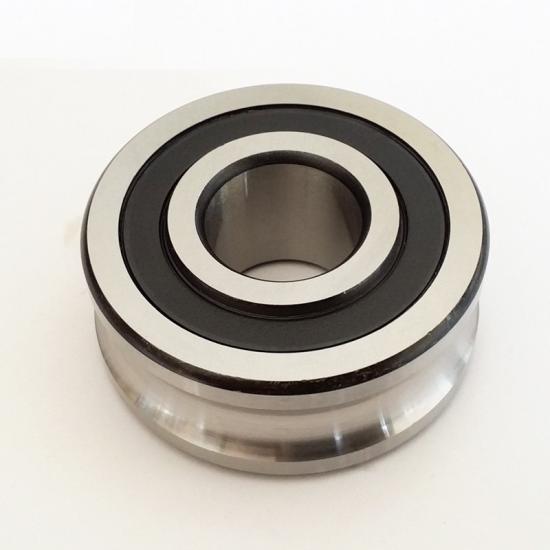

25mm Steel U Groove Track Roller LFR5206-20

LFR5206-20 KPP ,NPP Track Bearing With Ball Diameter:20 mm*Bore Diameter:25 +0/-0.008*Outer Diamter:72 mm +0/-0.05 *Inner Ring Width:25.8 mm +0/-0.012*Outer Ring Width:23.8 mm*Dynamic Load Rating:22 kN*Static Load Rating:16 kN The Running Accuracy:0.02 mmGrease:Shell Alvania EP2 Mass:0.43 kg

  • item no.:

    LFR5206-20
  • lead time:

    7 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • payment:

    30% TT in advance ,70% TT after finish produc
  • MOQ:

    1
products details



LFR Series U groove track rollers bearings are the most widely-use and economy bearings among the linear motion track rollers, and they can suit to the cylindrical track.

There are two contact points between the roller and track, so the contact function is favorable.

Rollers feature double row angular contact ball bearing in its internal structure design and a thick-walled outer ring, so rollers can accommodate higher loads.


 U Groove Track Roller LFR5206-20 Specification :

Bearing  LFR5206-20 NPP ,LFR5206-20 KDD
Material  Chrome steel ,stainless steel
Size 25*72*25.80mm
Cage Material PA66
Ball Grade  G10 Grade
Closure  KPP (2RS),KDD(ZZ)
Application  Linear motion
Service  Customized


 LFR5206-20 KDD BEARING


U Groove Track Roller Bearing Pictures:

Linear U groove bearing
U groove wheel


U Groove Track Roller Bearing Catalogue Number:

Bearing No. Dimensions (mm)      Weight
  dw d +0/-0.008 D+0/-0.05 C B +0/-0.12 A rs kg
LFR50/4-4 4 4 13 6 7.55 8.04 0,2 0,007
LFR50/5-4 4 5 16 7 8 9 0,2 0,01
LFR50/5-6 6 5 17 7 8 10,5 0,2 0,01
LFR50/6-6 6 6 19 8,5 9 11,5 0,3 0,013
LFR50/8-6 6 8 24 11 11 14 0,3 0,02
LFR50/8-8 8 8 24 11 11 14,75 0,3 0,02
LFR5201-10 10 12 35 15,9 15,9 20,65 0,3 0,08
LFR5201-12 12 12 35 15,9 15,9 21,75 0,3 0,08
LFR5201-10.40 10 12 39,9 18 20 22 0,3 0,12
LFR5201-14  14 12 39,9 18 20 24 0,3 0,1
LFR5202-12-ZZ 12 15 45 15,9 15,9 26,5 0,6 0,12
LFR5204-16-ZZ 16 20 52 20,6 22,6 31,5 0,6 0,23
LFR5206-20  20 25 72 23,8 25,8 41 0,6 0,435
LFR5206-25  25 25 72 23,8 25,8 43,5 0,6 0,425
LFR5207-30  30 30 80 27 29 51 1 0,660
LFR5208-40  40 40 98 36 38 62,5 1 1,360
LFR5301-10 10 12 42 19 19 24 0,6 0,130
LFR5301-20  20 12 42 19 19 28 0,6 0,125
LFR5302-10 10 15 47 19 19 26,65 1 0,163
LFR5308-50 50 40 110 44 46 72,5 1,1 1,400


We can provide Custom Service For U Groove Bearing Wheel,Below Here Is  Bearing We Produced Before

Bearing

Name

Bearing  Series  Can Be Used For

Detail Application

closure



Bearings Material

Cage

Material

Grease

Temp.

Range

Standard

Track

Rollers

LFR General purpose
Factory floor conditions
Automation
Automative
Woodworking
Pringting
Packaging
Paper/Textile

Seal

Shield

52100 Nylon 66 Shell
Alvania EP2

-30ºC to +100ºC

V Guide
wheels
stainless
SLFR

Corrosive

Medical
Laboratory
Food & Beverage

Seal

Shield

440C
stainless
Nylon 66 Shell
Alvania EP2

-30ºC to +100ºC

Studded
Polymer
Track

Roller

SLFR…P

Corrosive
Low noise requirements

Electronics
Medical
Laboratory
Shield Polymer
440C
stainless
304
stainless

Kluberplex
BEM034-132

-20ºC to +120ºC

Vacuum

Track

Roller

SLFR…VM

Vacuum

environments

Material science
Life sciences
Shield 440C
stainless
304
stainless
Lubcon
Ultrathern
2000

-35ºC to +250ºC

Washdown

Track

Roller

SLFR-WD

Washdown
Hygienic environments

Food processing
Food packaging

Double

Seal

440C
stainless
Nylon 66

FDA approved

Klubersynth
UH1 14-151

-30ºC to +100ºC

Food

Beverage
Pharma
Track

Roller

SLFR…FH

Washdown
Food equipment
Pharma equipment

Food processing
Food packaging
Pharmaceutical

Seal

Shield

440C
stainless
Nylon 66

FDA approved

Klubersynth
UH1 14-151

-30ºC to +80ºC

High

Temp.

Track

Roller

SLFR…227

High temp
Corrosive

Baking
Welding
Plasma cuttles
Shield 440C
stainless
304
stainless
Hrytox
GPL227

-30ºC to +260ºC

Low

Temp.

Track

Roller

SLFR…300 Low temp.
Subzero
Corrosive
Aerospace
Refrigeration
Flash freezing
Shield 440C
stainless
304
stainless
Kluber
Isoflex PDL
300A

-70ºC to +110ºC

U Groove Track Rollers Application :

 Industrial machinery: printing machinery, paper machinery, automation machinery, textile machinery, vending machines, woodworking machinery, packaging machinery


•  Electronic equipment: mechanical arm, measuring equipment, X-X platform, medical equipment, factory automation equipment


•  Rotation machinery: metal heat treatment designed nuclear reactor, brakes, etc


•  Aerospace industries: aircraft flaps brakes, seat brakes, missiles, airport apparatus and other equipment


•  Other: radio antenna brakes, door and window control, medical bed control, parking facilities, machine tool doors, laboratory automation, etc.
