2.83mm Chrome Steel Balls

new products

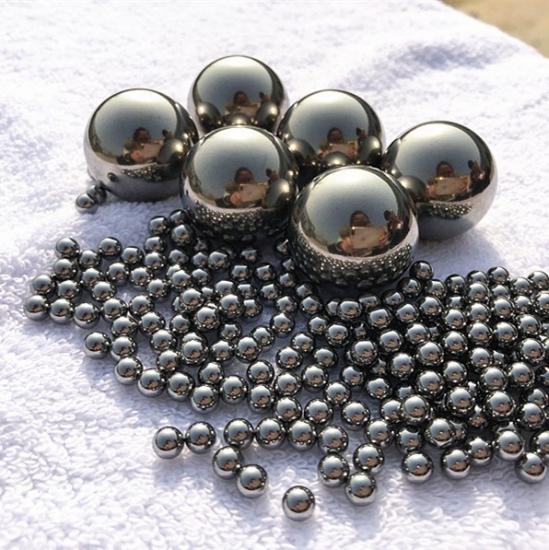

2.83mm Chrome Steel Balls

2.83mm steel balls produce with Chrome steel Gcr15 ,we can provide sample for you test before order .

  • item no.:

    2.83mm
  • lead time:

    7 days after confirm order
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    100000
products details


Gcr15 Bearing Steel Balls Introduction :


Chrome steel is a bearing grade alloy steel.

This material is known as :

52100 steel in the US,

100Cr6 in Europe,

SUJ2 in Japan

GCr15 in China

steel bearing balls


Chrome steel Gcr15 Chemical Composition:

AISI 52100

Chemical composition

C

Cr

Mn

Ni

P

Si

Standard value

0.95-1.05%

1.35-1.65%

0.25-0.45

≤0.3%

≤0.25%

0.15-0.35

Practical testing

1.01%

1.51%

0.33%

0.024%

0.18%

0.27%



We Can Produce Different Grade Steel Balls For You .


Grade

Vdws(≤)

Sph(≤)

Ra(≤)

Vdwl(≤)

Tdn(≤)

10

0.25um

0.25um

0.025um

0.5um

-

16

0.4um

0.4um

0.032um

0.8um

-

20

0.5um

0.5um

0.04um

1um

-

28

0.7um

0.7um

0.05um

1.4um

-

40

1.0um

1.0um

0.08um

2um

-

60

1.5um

1.5um

0.10um

3um

-

100

2.5um

2.5um

0.125um

5um

±12.5um

200

5um

5um

0.2um

10um

±25um

500

13um

13um

-

25um

±50um

1000

25um

25um

-

50um

±125um



Chrome Steel Balls Have Wide Applications :


In Ball Bearings

Grade 20, hardened chrome steel balls are applicable.

Manufactured in high carbon high chrome steel, also called bearing steel (AISI-52100 / EN-31)

Ball Diameter Tolerance: 0.000020 inch or 0.0005 mm or 0.50 microns.

Basic Diameter Tolerance: ± 0.0001" or ± 0.0025 mm or ± 2.50 microns


In Bicycles

Grade 200 or 500 are suitable.

Manufactured in hardened high carbon high chrome steel (AISI-52100 / EN-31 / EN-9 / M.S.)

Generally used diameter (in inches) are 1/8", 1/4", 3/16", 5/32"


 In Automotive Sub-assemblies

Generally stainless steel balls, AISI 304 or 316; Grade 100 are used.


In Valves

Material AISI 304 and AISI 316 is used.

Grade 200, Basic Diameter Tolerance ± 25 microns.

Sizes 6 mm to 12.7 mm and 1/4" to 1/2" diameters.


As Agitators

In the plating bath for plating zinc and lead

In the plating baths, chrome steel balls of 1, 1.5 and 2 mm diameters are used. High tolerance is not required and hence, grade 1000 polished ball is generally suitable. At times, stainless balls of 304 steel are also used.


In paint spray cans

Here balls of 3/8" or 10 mm diameters, G-1000 are used. The steel balls stir up the paint and mix it thoroughly.


In personal care products like nail polish

Because of non-usage, the fluid coagulates and the bottle is shaken to homogenize the fluid and make it free flowing. The bottle contains a steel ball which is used as an agitator ball to help in achieving the above when the bottle is shaken. Because of the fluid, the steel balls can be prone to corrosion, hence AISI 316 stainless balls are preferred. 3 and 5 mm sizes (1/8" and 3/16" diameters) are generally used. Grade -1000 is suitable for this application.


As valve for spray pumps and dispensers

Stainless steel AISI-316 balls are used in spray pumps as a one way valve. SS-316 (Chromium 16-18%, Nickel 10-12%) has good corrosion resistance which is essential for personal care products and cosmetics. At times, in detergent pumps, AISI-304 stainless steel ball is used.




AISI 52100 Chrome Steel Ball Size :


We produce 2, 3, 4 and 5 mm or 3/32", 1/8", 5/32" and 3/16 inch diameter balls usually ,we also can produce non-standard balls for you.

Chrome steel balls
